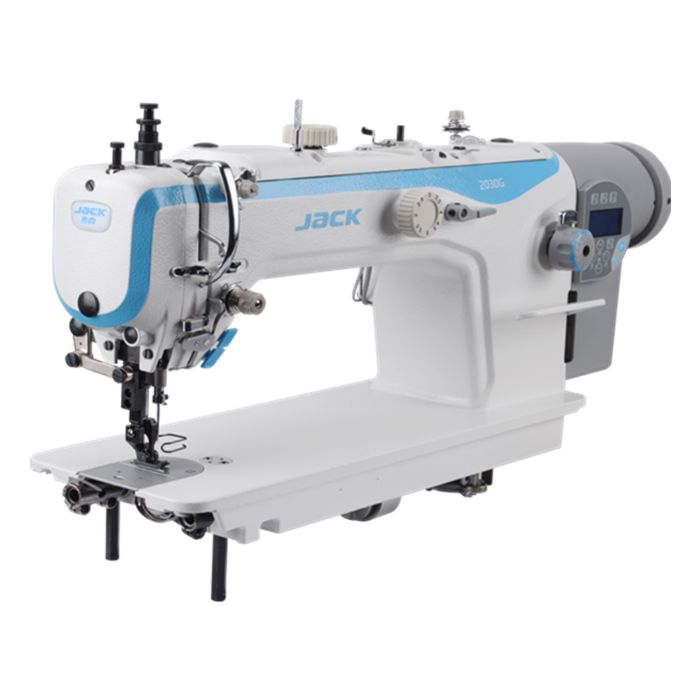

JACK JK-2030GHC-4Q COMPLETE MACHINE WITH FOOT LIFTER

Jack JK-2030GHC-4Q - Top & Bottom Feeding Computerized Lockstitch Machine. This 1-needle lockstitch machine is specifically designed for sewing thicker materials such as leather and upholstery fabrics. It features an energy-efficient Direct Drive motor integrated directly into the machine head, ensuring quiet operation and low power consumption. The double transport system—combining bottom feed dogs and an upper rolling foot—provides perfect synchronization and smooth feeding of both upper and lower fabric layers, even with challenging materials. Equipped with a clear, easy-to-use operating panel built into the machine head and bright LED illumination at the needle bar for improved visibility. The extended arm design offers a generous workspace, with a distance of 33.5 cm from the machine body to the needle bar, accommodating larger and bulkier items.
Pricing and Availability on Request
Contact Us for Quote

Why Buy from Us?

  • You are dealing with the official Jack UK Importing and Distributing Network
  • Your machine enquiry will be passed onto your local Jack dealer who will quote, setup, and install your new machines. As well as providing full after sales support and warranty
  • Our centralised distribution warehouse supplies Jack machinery to all Jack Traders, providing the best possible service and local contact for your sewing requirements

Description / JACK JK-2030GHC-4Q COMPLETE MACHINE WITH FOOT LIFTER

Jack JK-2030GHC-4Q
- Top & Bottom Feeding Computerized Lockstitch Machine.

This 1-needle lockstitch machine is specifically designed for sewing thicker materials such as leather and upholstery fabrics. It features an energy-efficient Direct Drive motor integrated directly into the machine head, ensuring quiet operation and low power consumption.
The double transport system—combining bottom feed dogs and an upper rolling foot—provides perfect synchronization and smooth feeding of both upper and lower fabric layers, even with challenging materials.
Equipped with a clear, easy-to-use operating panel built into the machine head and bright LED illumination at the needle bar for improved visibility.
The extended arm design offers a generous workspace, with a distance of 33.5 cm from the machine body to the needle bar, accommodating larger and bulkier items.

Top & Bottom Feeding

Delivers strong, synchronized feeding from both the top and bottom, preventing fabric slippage and ensuring consistent stitch quality.

Spacious Operation Area

Measuring 335mm × 150mm, this workspace is 75mm wider and 20mm taller than standard models, providing greater flexibility for a wide range of applications.

All the Power You Need

Equipped with a 750W servo motor delivering strong needle penetration, this machine effortlessly sews through up to 8 layers of leather.

Easy to Learn, Easy to Use

Simple adjustment of the inner and outer presser foot makes it ideal for sewing various thick fabrics with consistently beautiful stitches.


Technical Specification

Model Jack JK-2030GHC-4Q
Application Sofa, Car Seats, Luggage, Shoes
Needle DPx17 20-23#
Threads 2
Two Presser Foot Working Distance (mm) 2.5-5.5
Presser Foot Lifting Height (mm)/th> 8/16
Max Sewing Speed (S.P.M) 2200
Automatic Thread Trimming Yes
Auto Reverse Yes
Electronic Thread Tension Yes
Integrated Drive Drive Yes
Auto Presser Foot Lifter Yes
Volume (mm) 785x320x605
Weight (KG) 43/53

Product Attachments

More Information

Part No JACKJK2030GHC4QC
Weight (KG) 81.000000
Manufacturer Jack
