JACK C5-4-M03/333/KS 2N 4TH AUTOMATIC WITH SUCTION DEVICE

Contact Us for Quote
Contact Us for Pricing and Availability
Part No
JACKC54M03333KS
Click Here to Request Quote

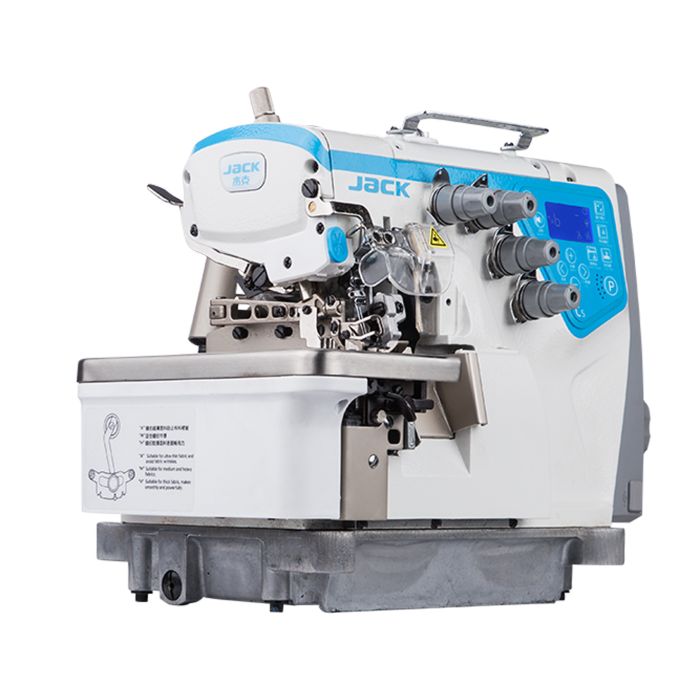

Jack C5-4-M03/333/KS

High Speed Automatic 4-Thread Overlock Machine with Vertical Suction Device

Advanced pneumatic high speed sewing machine with 3 built-in photocells for automatic sewing. Fast acceleration and deceleration response increased by 50%. Light / medium / heavy duty selector to adapt the machine to the right type of fabric. Short cut front and back at 5mm.

Chaincutter Wasted Suction (KS/KH)

The front part sucks up the scraps of material, while the back part sucks up the cut threads and allows you to keep the seam clean.

Short Thread

Thanks to the automatic electric cutter controlled by the photocells, the cut is 5mm both in front and behind.

L/M/H Selector

By means of a lever it is possible to change the inclination of the feed dog according to the type of light, medium or Heavy Duty fabric, this allows to meet the various work needs. (PATENTED)

Vocal Guide

Using the machine it will teach you the various functions itself, if there are errors it will notify you and by clicking the VOICE button it will suggest how to solve the problem, also with a single key you can return to the initial settings.

Speed Up To 7000 R.P.M

The maximum speed is 7,000 rpm, which is 35% faster than a standard machine.

Durable Pieces

The main moving parts are anti-wear, ensure a long life in high-speed operation.

Industry 4.0 (Optional)

Thanks to the integrated WIFI module you can modify the parameters and control the productivity of the machine directly from the application. NB: a Jack gateway must be purchased for every 50 machines


Technical Specifications

Model Jack C5-4-M03/333/KS
Application Plain Seaming
Needle DCx27
Needle Size #11
Number of Needles 2
Number of Threads 4
Needle Distance 2
Stitch Width (mm) 4
Stitch Length 4.6
Differential Ratio 0.7-2
Presser Foot Lifting Height (mm) 5.5
Max Speed (s.p.m) 7000
Volume (mm) 525x360x630
Weight (kg) 33/44
More Information
Part NoJACKC54M03333KS
Weight (KG)81.000000
ManufacturerJack
