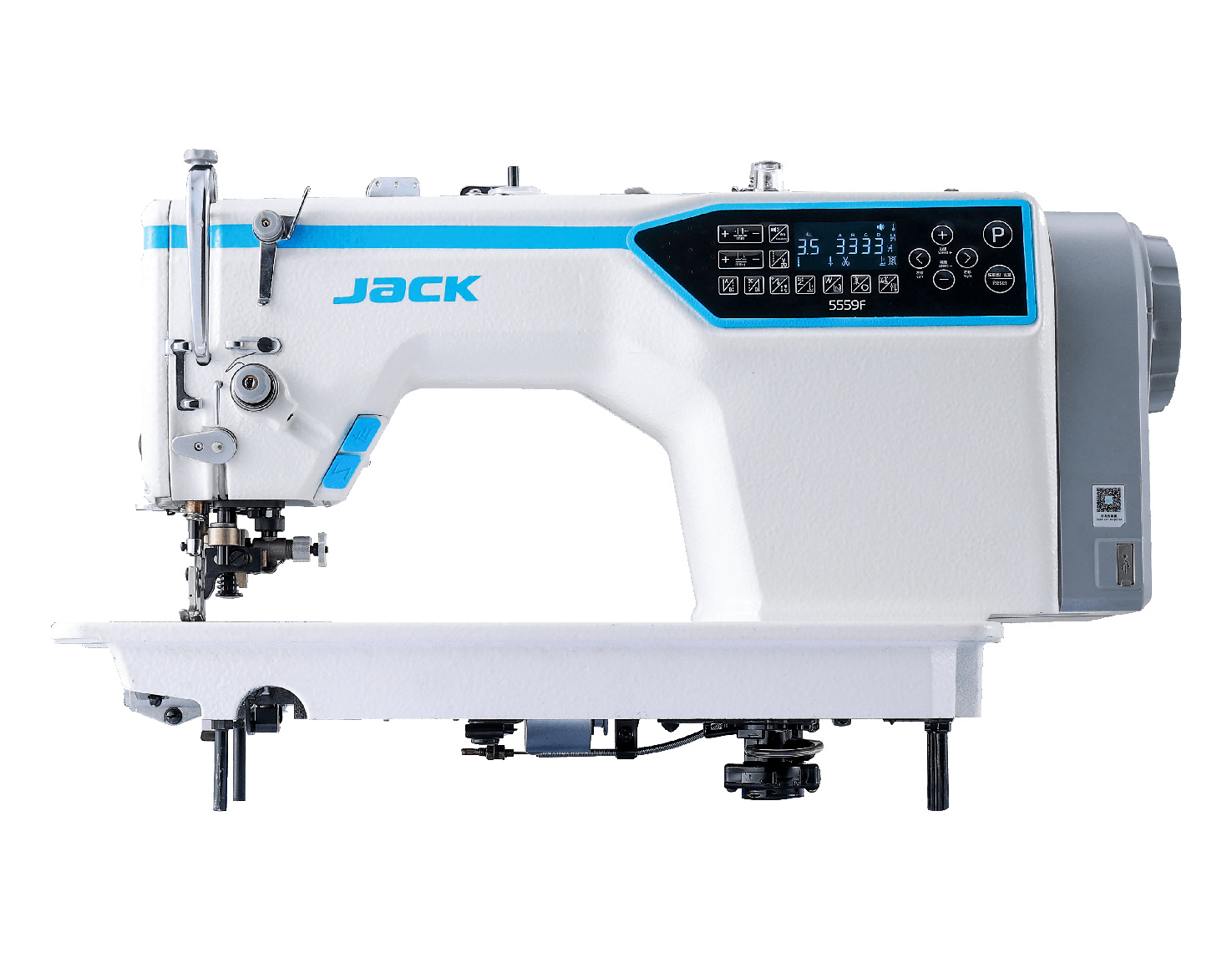

JACK JK-5559F-W 1N 1/8 3.2MM GAUGE EDGE TRIMMING MACHINE WITH AUTO FOOT LIFT
Why Buy from Us?
- You are dealing with the official Jack UK Importing and Distributing Network
- Your machine enquiry will be passed onto your local Jack dealer who will quote, setup, and install your new machines. As well as providing full after sales support and warranty
- Our centralised distribution warehouse supplies Jack machinery to all Jack Traders, providing the best possible service and local contact for your sewing requirements
Description / JACK JK-5559F-W 1N 1/8 3.2MM GAUGE EDGE TRIMMING MACHINE WITH AUTO FOOT LIFT

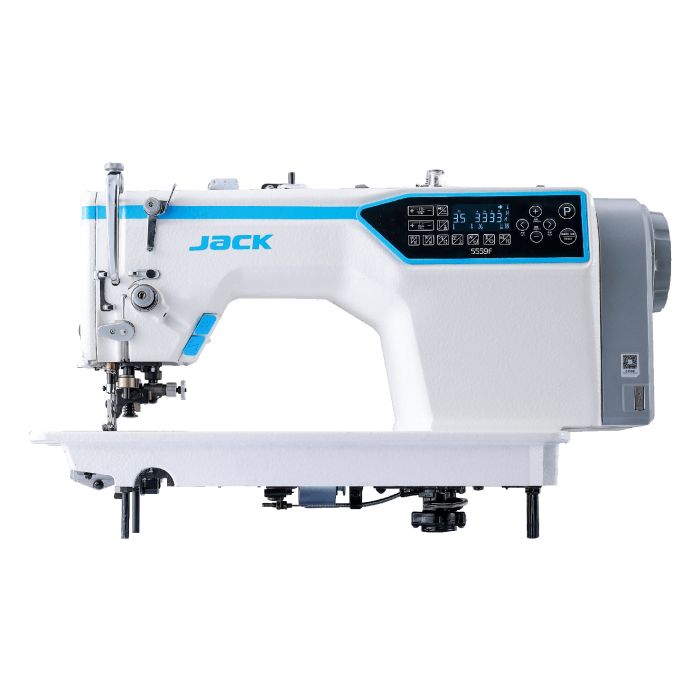

Jack JK-5559F-W
- 1-Needle Bottom Feed Lockstitch Machine with Edge Trimmer (3.2 mm / 1/8 inch).
This machine features automatic functions and an energy-saving direct-drive motor built into the head, ensuring quiet, reliable operation with reduced power consumption. The built-in operating panel includes voice guidance in English and an adjustable LED light with three intensity levels. A USB port is provided for connecting external devices, such as charging a mobile phone. The machine uses a central lubrication system with a traditional oil sump for smooth, consistent maintenance.

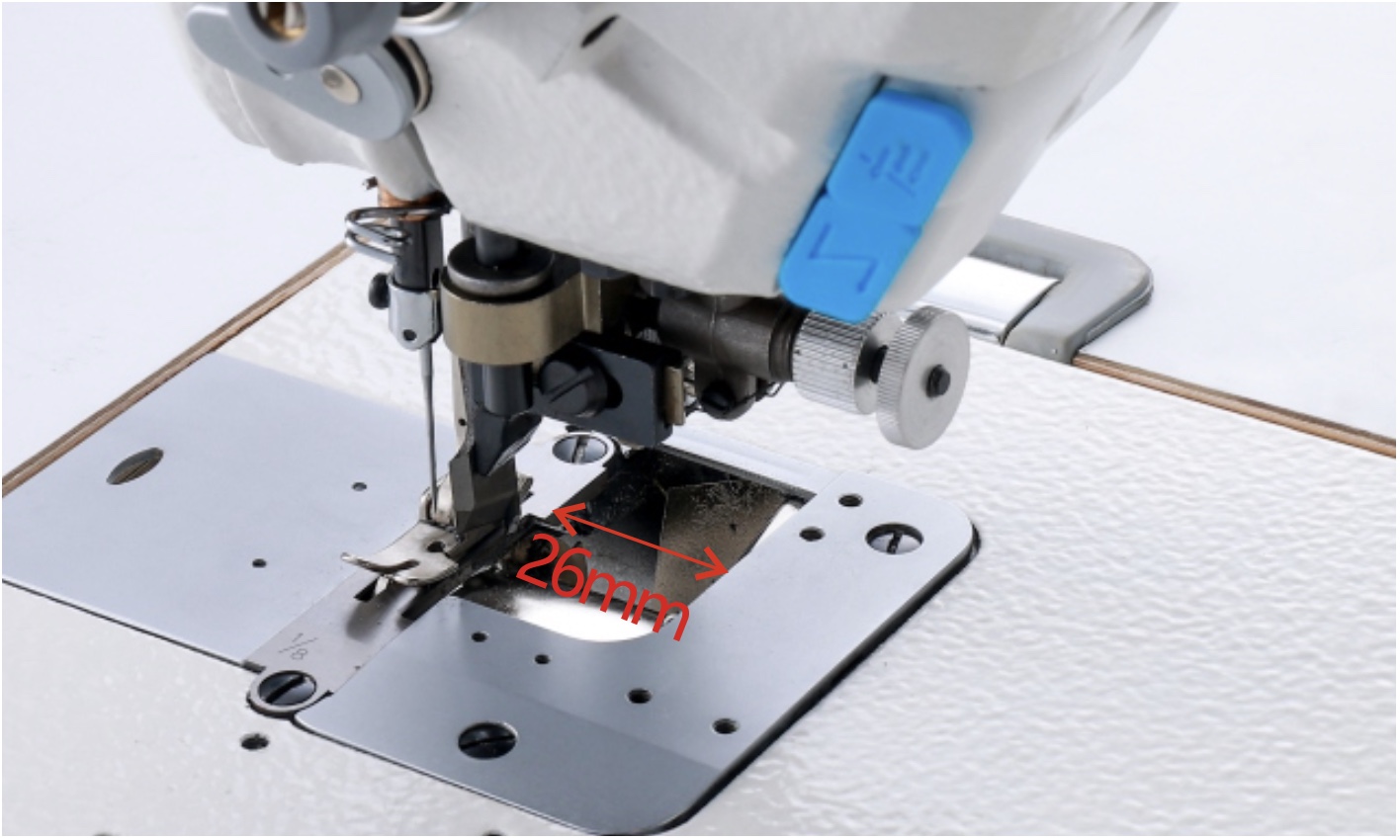

Edge Cutter
Sew and trim simultaneously by activating or deactivating the side trimming knife. The machine includes a 26mm space for clipping collection, keeping your workspace clean and efficient.
Digital Stitch Length
Stitch length is precisely controlled by a stepper motor, adjustable down to 0.1mm. A lock function prevents accidental changes during operation.

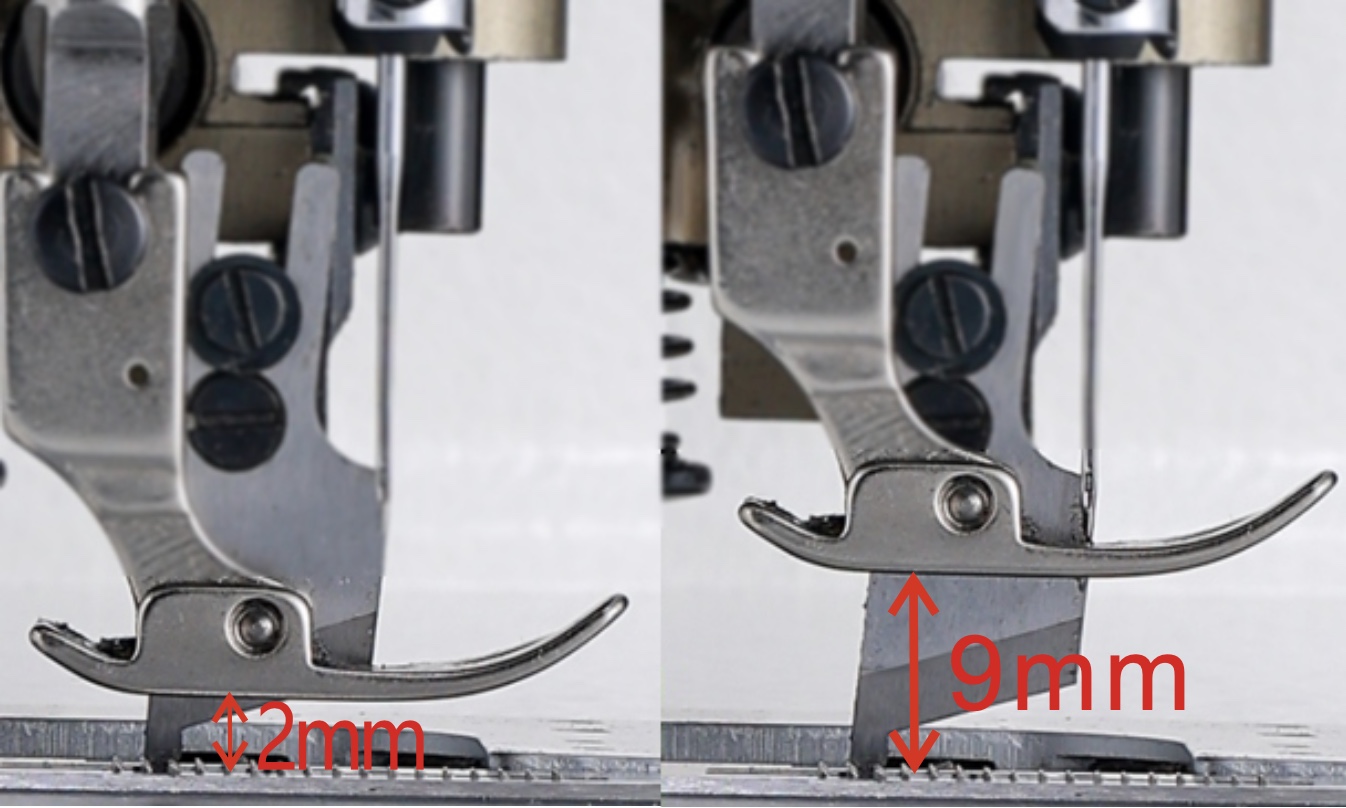

Digital Footlifter
The presser foot lifter is digitally controlled by a stepper motor, allowing easy adjustment up to 9mm with a simple click from the control panel.
Silent Digital Bartack
The stepper motor-driven electronic bartack significantly reduces noise, creating a quieter and more comfortable working environment.
Sewing Motifs
Create beautiful ornamental stitches with alternating stitch lengths. Patterns can be customized to fit your specific design needs.

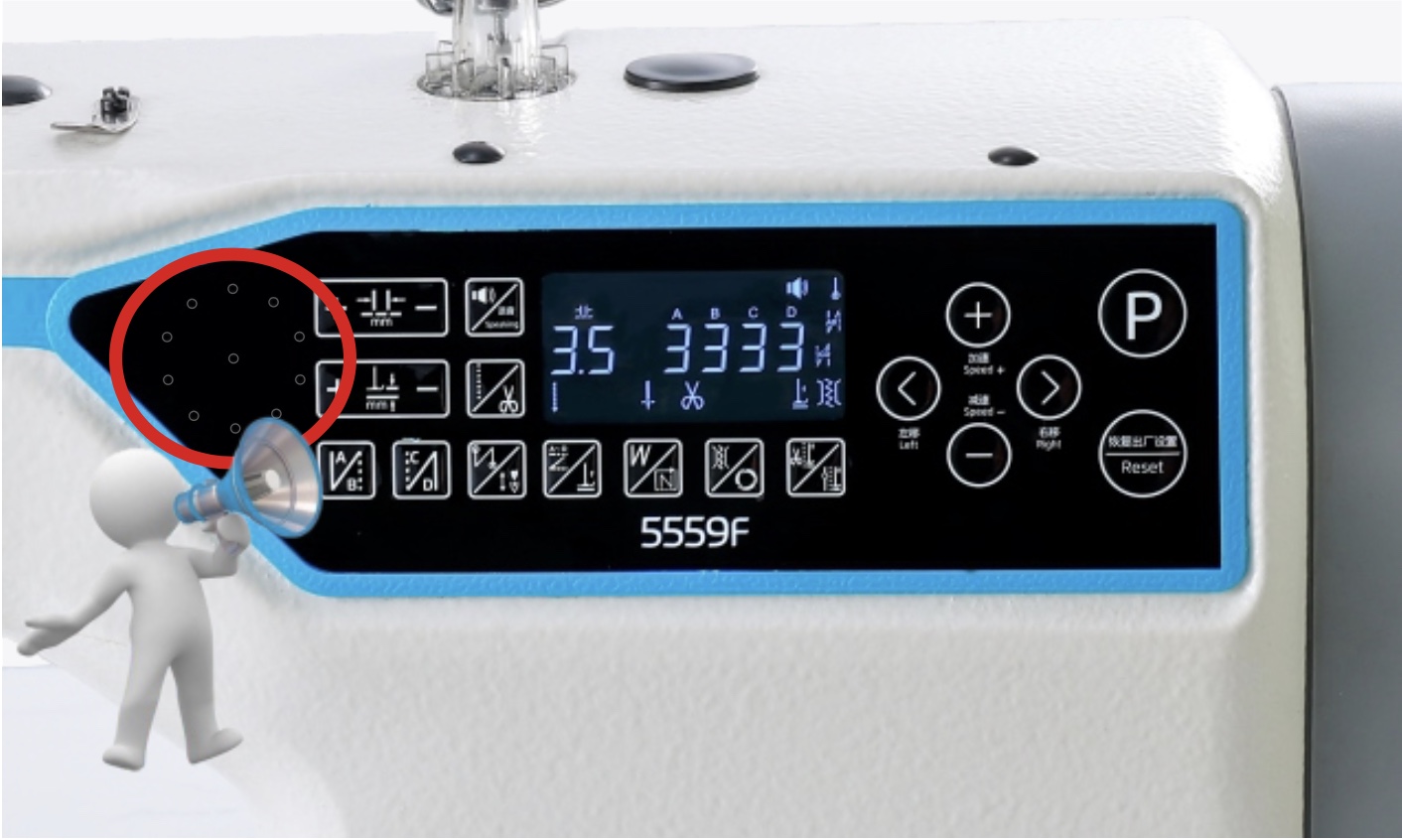

Voice Guide
The machine guides you through its functions with voice instructions. If an error occurs, it notifies you and, by pressing the VOICE button, suggests solutions to resolve the issue.

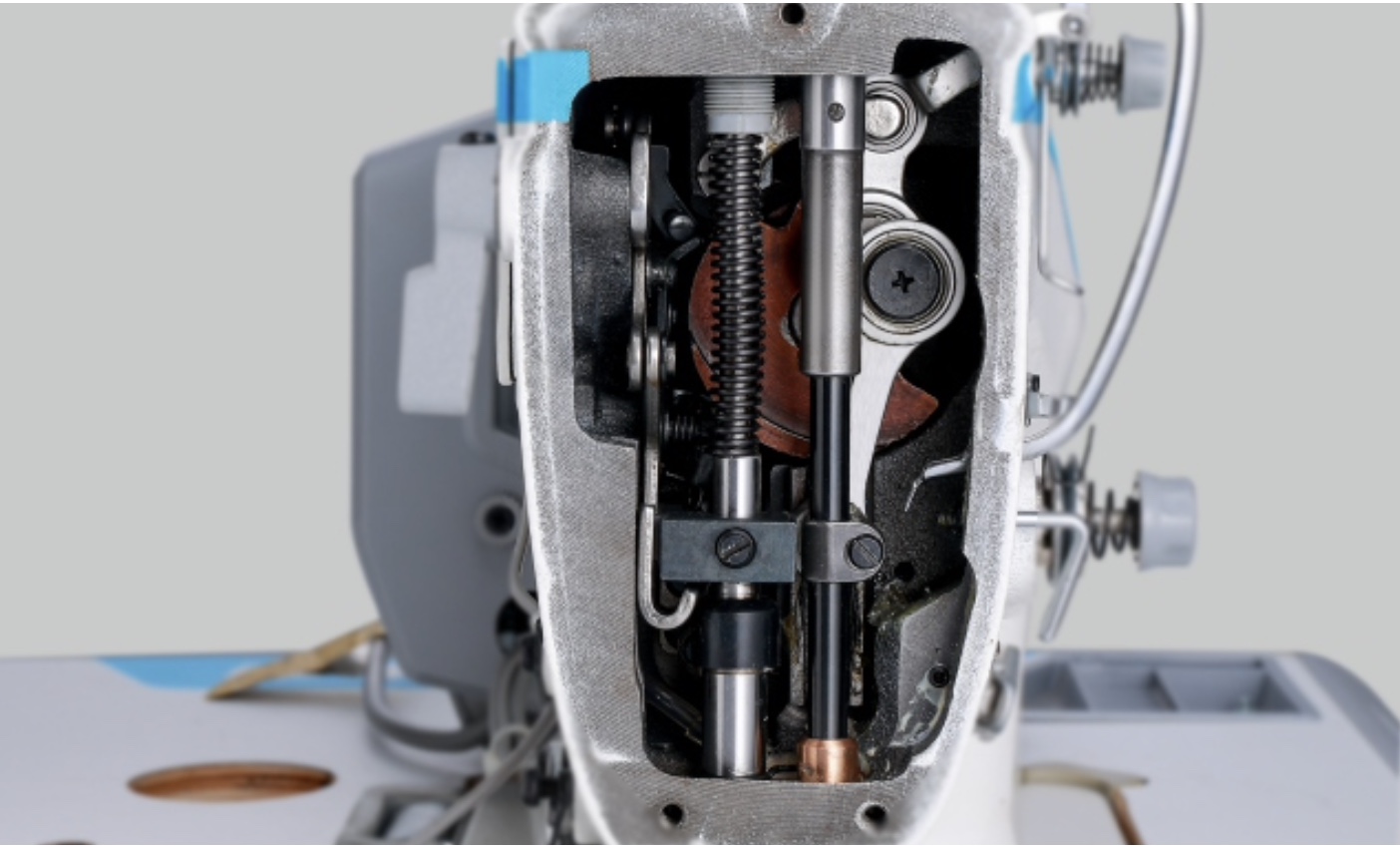

Semi-Dry
The machine features a dry head lubricated with grease instead of oil. The black needle bar is treated with Diamond Like Carbon (DLC) for enhanced hardness and wear resistance.
Technical Specification
| Model | Jack JK-5559F-W |
|---|---|
| Needle | DBx1 11-18# |
| Thread Number | 2 |
| Max. Stitch Length | 5 mm |
| Presser Foot Lifter Height | 0 - 9 mm |
| Max. Speed | 4000 s.p.m |
| Semi-Dry | Dry head: No oil |
| Knife Distance | 3.2 mm / 1/8" |
| Volume | 695 x 295 x 550 mm |
| Weight | 40 / 46 kg |
