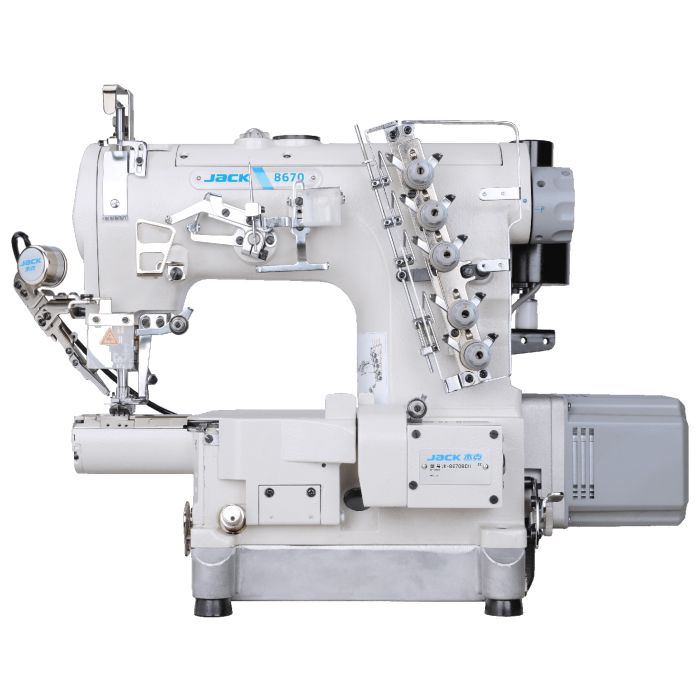

JACK JK-8670BDII-01CB/UT 3N 5.6MM UBT SMALL CYLINDER COVERSEAM

Jack JK-8670BDII-01CB/UT - Small Cylinderbed Interlock
Pricing and Availability on Request

Book a Showroom Visit to See this item

Why Buy from Us?

  • You are dealing with the official Jack UK Importing and Distributing Network
  • Your machine enquiry will be passed onto your local Jack dealer who will quote, setup, and install your new machines. As well as providing full after sales support and warranty
  • Our centralised distribution warehouse supplies Jack machinery to all Jack Traders, providing the best possible service and local contact for your sewing requirements

Description / JACK JK-8670BDII-01CB/UT 3N 5.6MM UBT SMALL CYLINDER COVERSEAM

Jack JK-8670BDII-01CB/UT
- Small Cylinderbed Interlock

Automatic Thread Trimmer

Up and down thread trimmer, the lower knife set adjustment screw is movable ensuring a wide trimming range, less hassle, longer life, high efficiency, 100% accurate cutting.

Automatic Thread Trimmer

Small Cylinderbed

Very small 180mm perimeter arm particularly suitable for sewing T-shirt sleeves for children.

Small Cylinderbed

Anti-Winding Cam

Prevents the thread from tangling to the cam. The cam is external and can be opened to facilitate the threading of the machine: comfortable, fast and precise.

Anti-Winding Cam

Efficient Feeding On Cross Sewing

The slope of the presser foot is optimized, the seams are not in the way, the stitches are uniform.

Efficient Feeding On Cross Sewing

Direct Drive Motor

The integrated fan into the motor allows it to cool down quickly, delaying the aging time of the electronic components and extending the life of the motor. It save up to 71% of energy.

Direct Drive Motor

Technical Specifications

Model Jack JK-8670BDII-01CB/UT
Function Plain Seaming
Needle UY128GAS #11-14
No. of Needles 3
No. of Threads 5
Stitch Length 1.5-3.6mm
Stitch Width 5.6 / 6.4 mm
Differential Ratio 0.8-1.4
Presser Foot Lifting Height 6.2mm
Max Speed 4500 s.p.m
Volume 680 x 420 x 630 mm
Weight 50kg / 60kg

More Information

Do you know, we also stock spare parts for Jack Sewing Machinery?
You can find spare parts for all machinery on our parts website.

Click Here for Spare Parts

Technical Specifications

Part No JACKJK8670BDII01CBUT
Weight (KG) 90
