JACK JK-T2284B STANDARD/3 STEP ZIG ZAG DIRECT DRIVE MACHINE

Contact Us for Quote
Contact Us for Pricing and Availability
Part No
JACKJKT2284B
Click Here to Request Quote

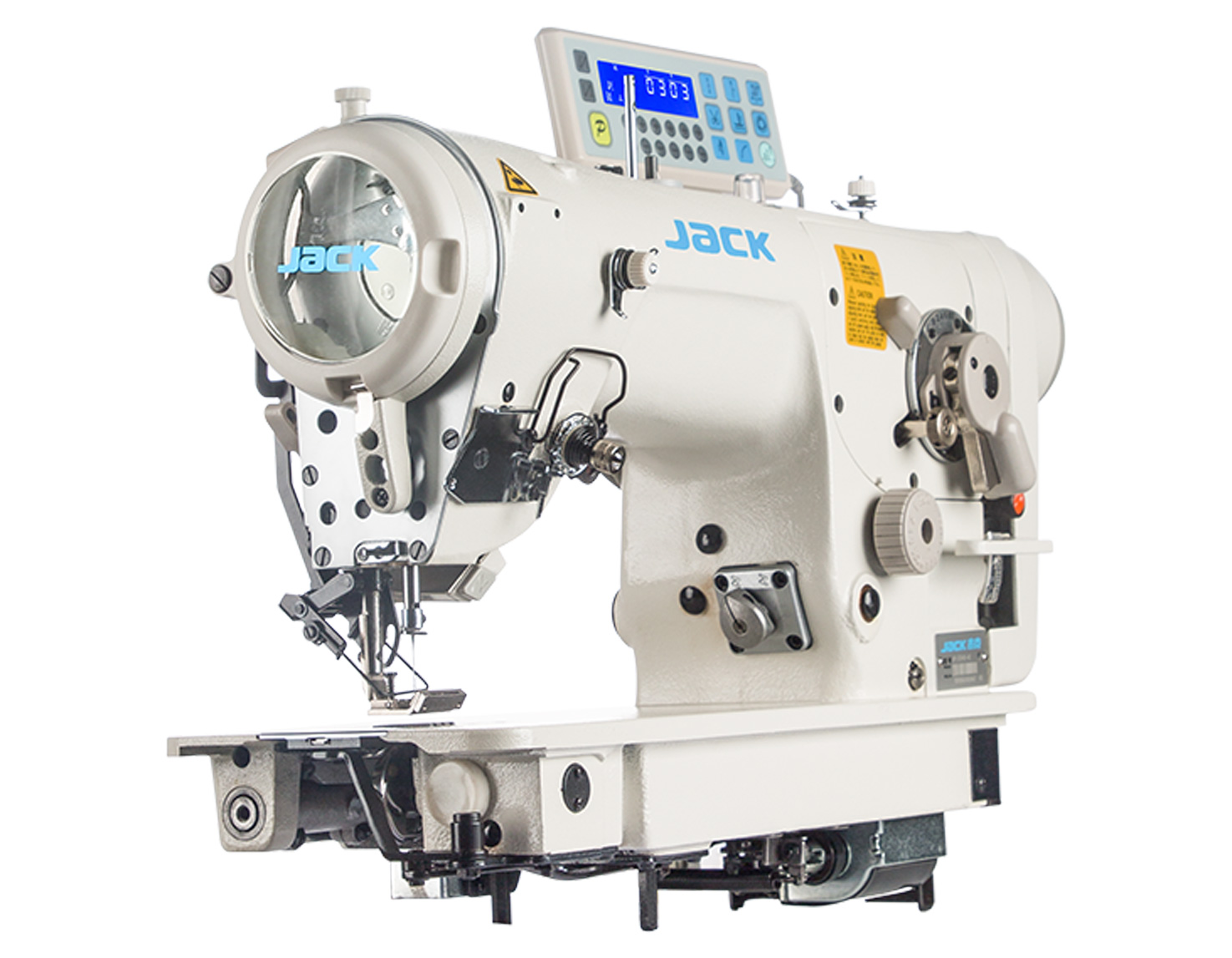

Jack JK-T2284B

3-Step Zig Zag

Automatic Zig-Zag machine, equipped with an energy-saving motor mounted in the head, directly on the main shaft of the machine (Direct Drive). This solution guarantees quiet and reliable operation and lower electricity consumption. A closed lubrication system (no typical oil pan) guarantees lower oil consumption, better lubrication of the machine mechanisms and protects against accidental staining of the material.

Three Stitch

3-stiches Zig Zag available with this pattern.

Computerized

Through the panel you can adjust the various advanced functions of the machine.

8mm Zig Zag

The JK-2284 machine is suitable for sewing: women's underwear, jackets, gloves, elastic reinforcements and other products that require zig-zag stitching up to 8mm wide or three stitch.

Easy Zig Zag Width Adjustment

With a knob it is possible to adjust the oscillation of the needle bar according to the user's needs.

Elastic Foot

The seams made on thin materials and stretch fabrics remain particularly stable.


Technical Specifications

Model Jack JK-T2284B
Needle DPx5 10#-14#
Stitch Pitch 8
Presser Foot Height (mm) 5.5-10
Auto Reverse -
Auto Trimming -
Auto Thread Tension Release -
Auto Wiper -
Auto Presser Foot Lifter -
Speed (S.P.M) 4500
Weight 39/47
Volume (mm) 770x350x620
More Information
Part NoJACKJKT2284B
Weight (KG)75.000000
ManufacturerJack
