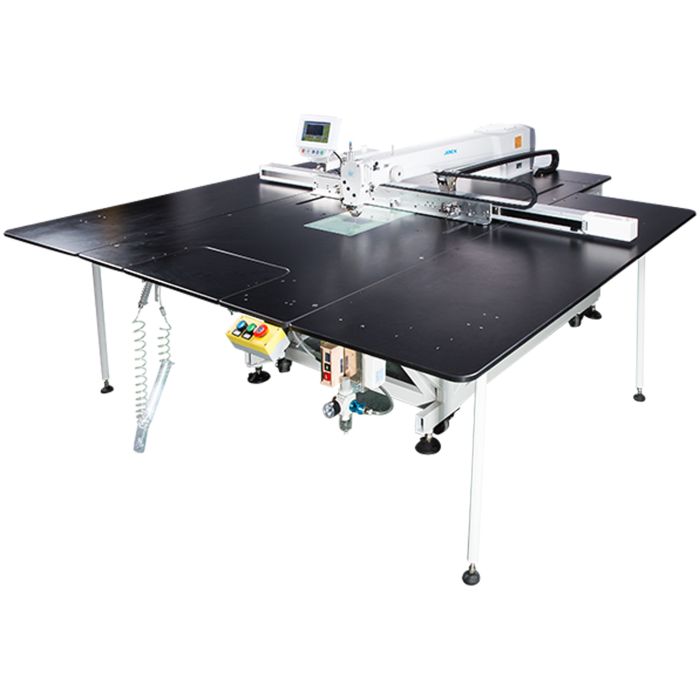

Jack MS-90A-80SX

Advanced Pattern Field Machine - Sewing Area 1400 x 800 mm

Advanced pattern field machine with big sewing range 140x80cm, advanced for different materials, with double screw transmission. Remote PC programmable.

Adjustable Presser Foot

Prevents stitch skipping, thread breakage, prevents product damage and meets the sewing requirements of different fabrics.

Open Window

The opening and closing of the work surface allows easy threading of the machine and a quick change of bobbin.

Big Operation Space

The 1400x800mm Pattern Field is managed by the X-dimension system that allows you to manage the X axis by considerably reducing vibrations, also increasing the fluidity of movement.

Wide Range Of Feet

It is possible to choose the presser foot from a wide range, so that it meets the different requirements for different sewing operations.

RFID Reader

The radio frequency reader reads disks where you can save the drawing of sewing endless times. When you approach the template, the machine will automatically change the drawing.

Industry 4.0 (Optional)

Thanks to the integrated WIFI module you can modify the parameters and control the productivity of the machine directly from the application. NB: a Jack gateway must be purchased for every 50 machines

Screw Transmission

The double screw transmission for the Y direction which allows to improve efficiency unlike the belt transmission where maintenance is greater.

Technical Specifications

Model Jack MS-90A-80SX
Application Plate Sewing
Needle DPx5 7 - 16#
Sewing area (mm) 1200x850
Number of Needles 1
Number of Threads 2
Presser Foot Height (mm) 17
Max Speed (s.p.m) 3000
Volume (mm) 2160x1100x1350
Weight (kg) 527/620
More Information
Part No JACKMS90A80S
Weight (KG) 32.000000
Manufacturer Jack
