JACK JK-798TDI-4-514-A04/435 4 THREAD TOP FEED OVERLOCK COMPLETE
Contact Us for Pricing and Availability
Part No
JK798TDI4514A04435
JACK JK-798TDI-4-514-A04/435
Super High Speed Variable Top-feed
A series of 4 or 5-thread and 2-needle overlocks, equipped with an integrated energy-saving servo motor (Direct Drive system), which guarantees quiet and reliable operation and lower power consumption. Double transport: bottom and top. The upper transport ensures the perfect movement of the upper and lower layers of the sewn materials, eliminates the problem of overcoming transverse stitching and any gussets. JACK Overlock JK-798TDI is designed for sewing medium and heavy materials.
Technical parameters
- sewing speed: 7000 stitches / min
- double transport: bottom and top
- central lubrication

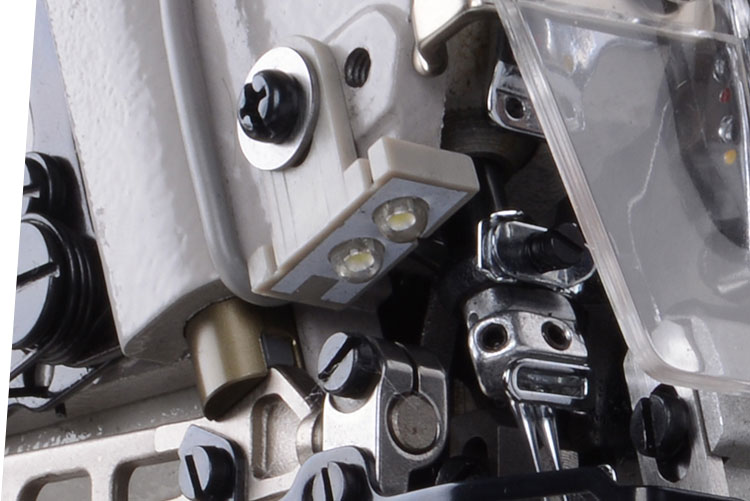

- integrated LED lighting for the work field
Technical Specification
| Model | Needles | Number of needles | Number of threads | Needle gauge (mm) | Stitch width (mm) | Stitch length (mm) | Differential transport | Presser foot lift (mm) |
|---|---|---|---|---|---|---|---|---|
| JK-798TDI-4-514-A04/435 | #9 | 2 | 4 | 2 | 4 | 6,5 | 0,7 - 2 | 6 |
| JK-798TDI-5-516-A04/435 | #14 | 2 | 5 | 5 | 6 | 5 | 0,7 - 2 | 7 |
| Part No | JK798TDI4514A04435 |
|---|---|
| Weight (KG) | 66.000000 |
| Manufacturer | Jack |
