JACK A5E-QL LARGE SPACE COMPUTERISED LOCKSTICH WITH ELECTRONIC CONTROL STITCH LENGTH
Why Buy from Us?
- You are dealing with the official Jack UK Importing and Distributing Network
- Your machine enquiry will be passed onto your local Jack dealer who will quote, setup, and install your new machines. As well as providing full after sales support and warranty
- Our centralised distribution warehouse supplies Jack machinery to all Jack Traders, providing the best possible service and local contact for your sewing requirements
Description / JACK A5E-QL LARGE SPACE COMPUTERISED LOCKSTICH WITH ELECTRONIC CONTROL STITCH LENGTH

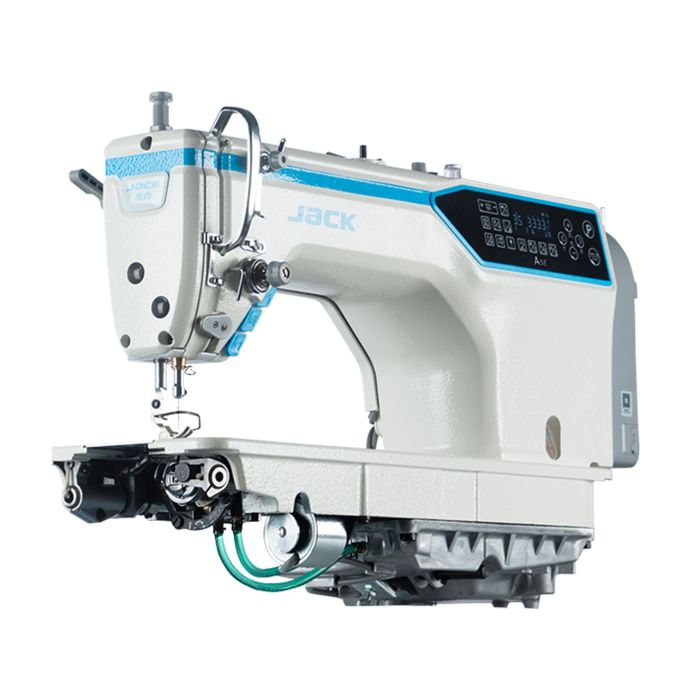

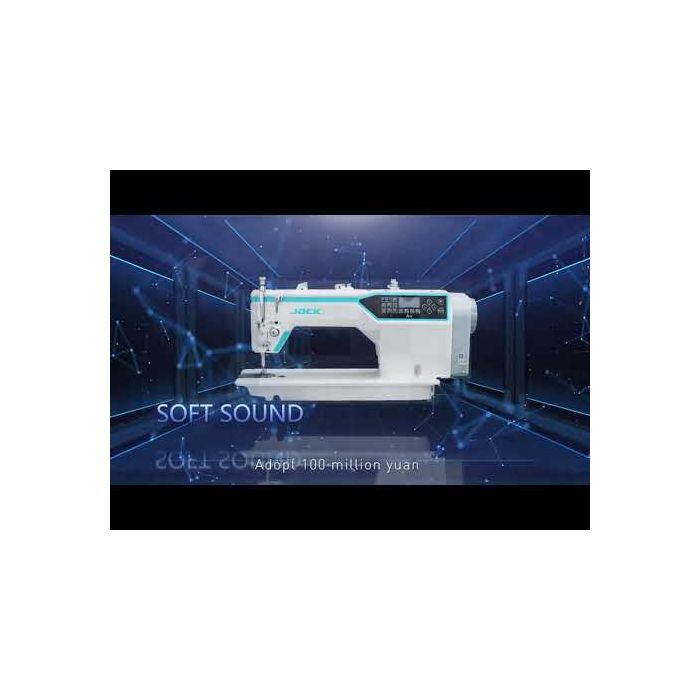

Jack A5E-QL
- Large Space Computerized Lockstitch Machine.
Features a spacious underarm area for easier handling of large projects. Offers digital stitch adjustment, silent digital bartack, and customizable sewing patterns. Equipped with an electric tension disc opener, automatic bobbin cutter, and elongated needle bar for extended reach. Includes automatic thread trimming, digital presser foot lifter, digital bartack, and short thread trimming. A sealed oil pan ensures clean, low-maintenance operation.

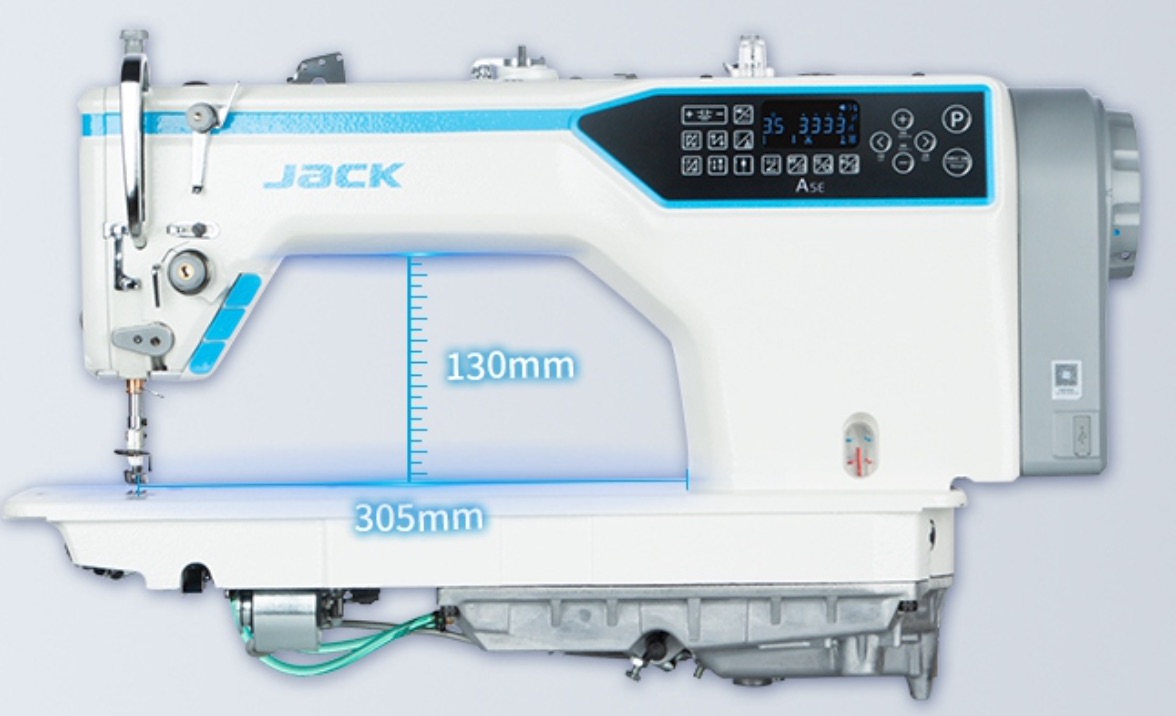

Big Space Underarm
Offers a large working area for easy fabric handling. Perfect for sewing bulky items like quilts, quilted jackets, and detailed small-scale projects without limitations.
Digital Stitch Length
Stitch length is precisely controlled by a stepper motor, adjustable in 0.1mm increments. Includes a lock function to prevent unintentional changes during operation.

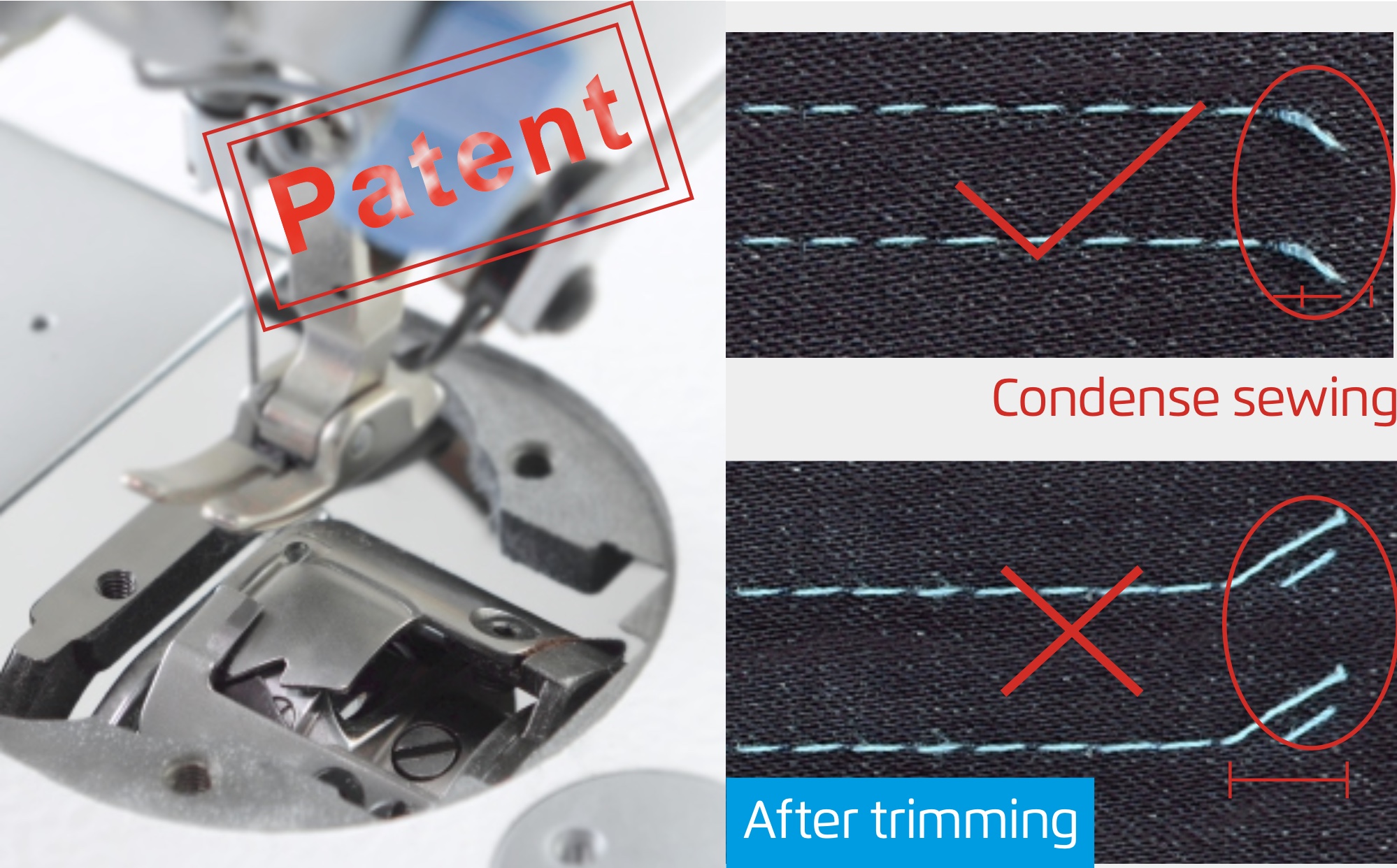

Short Thread
Eliminates the need for manual trimming, reducing the risk of damaging your work and saving time and cost. Optional initial and final condensation stitches help prevent seam unraveling for a clean, secure finish.

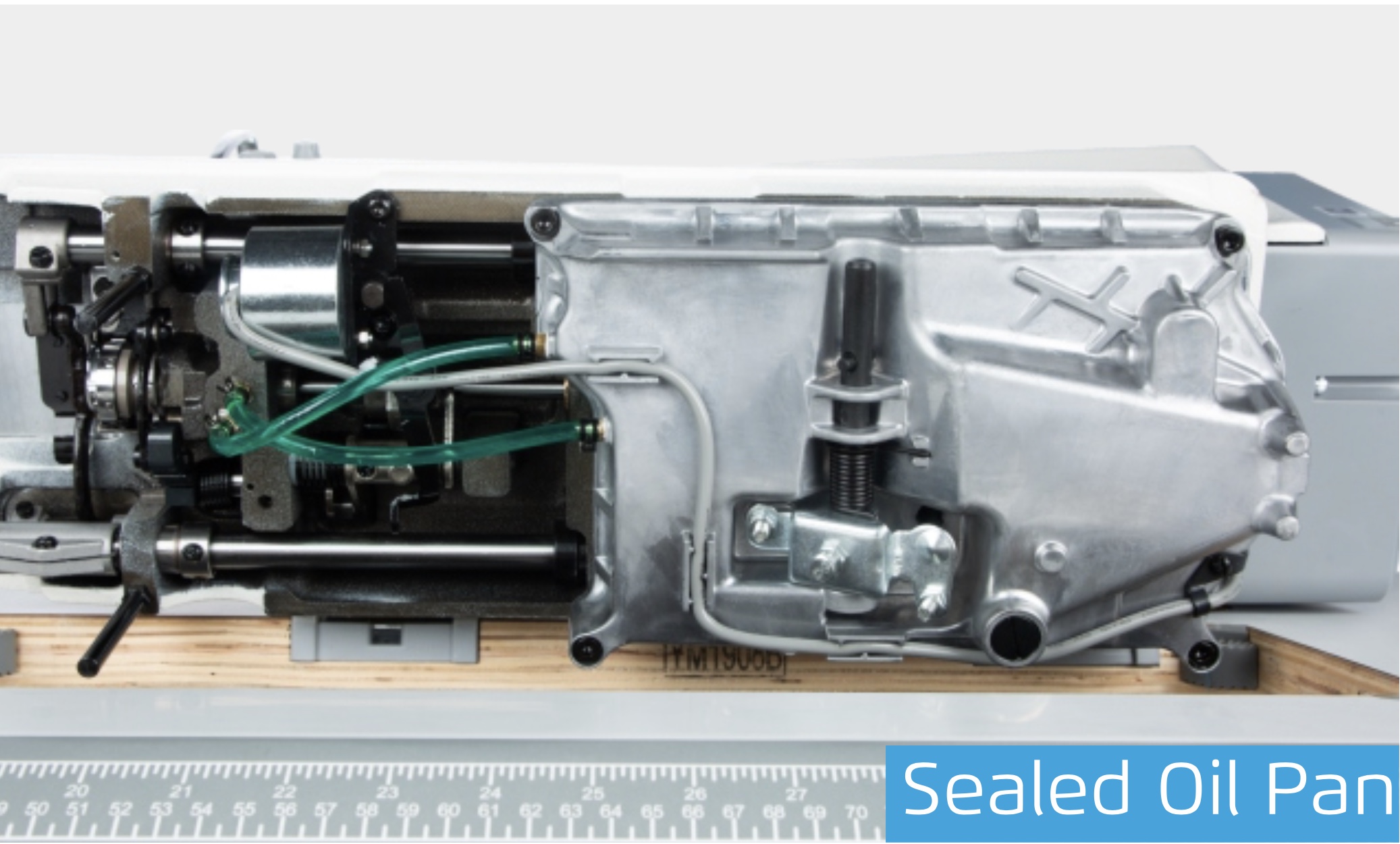

No Oil
A sealed oil pan prevents dust entry, keeping the machine clean and durable while ensuring consistent, mess-free lubrication.
Pattern Sewing
Create elegant ornamental stitches using alternating stitch lengths. Patterns are customizable to suit different styles, fabrics, and design needs.

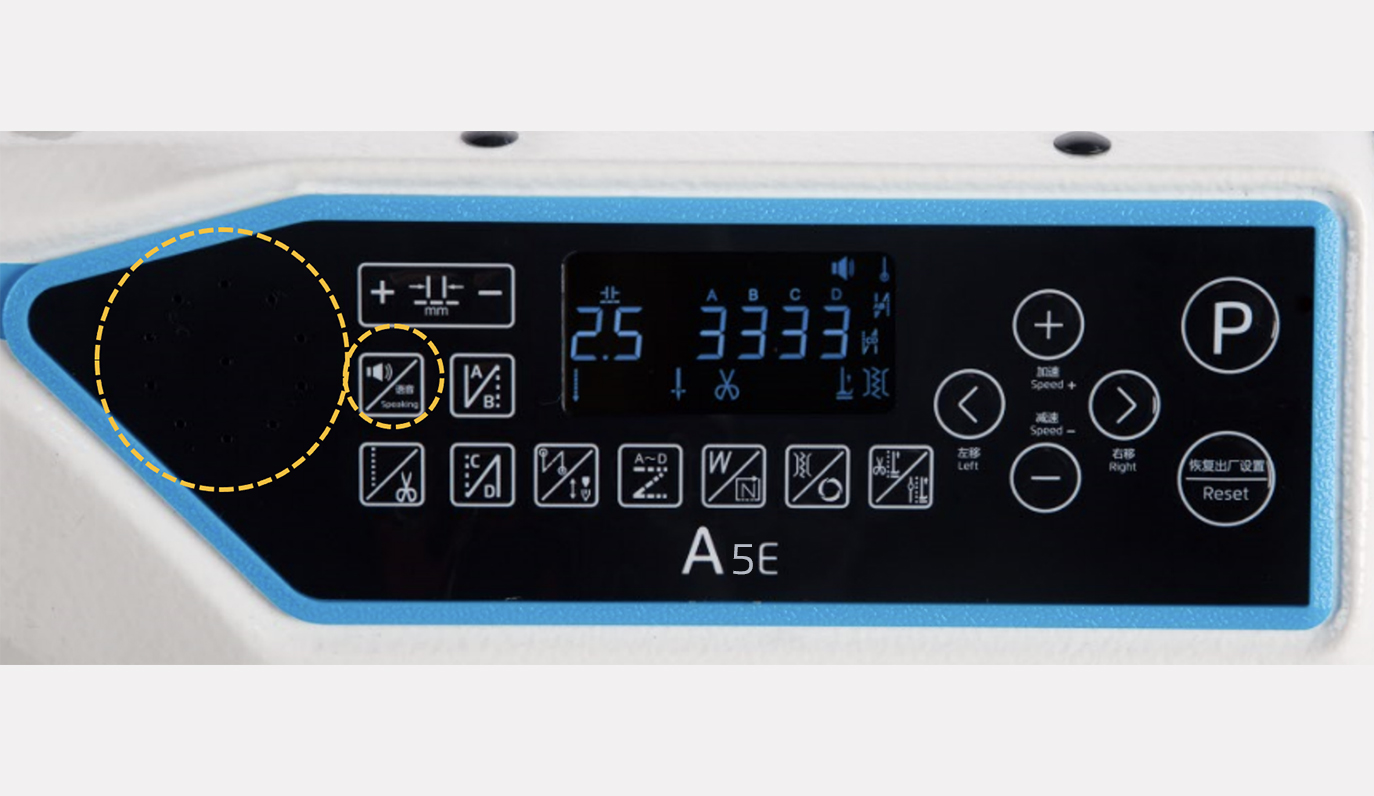

Voice Guide
The machine provides step-by-step voice instructions to help you learn its functions. If an error occurs, it alerts you and offers voice-guided solutions at the press of a button.
Bird’s Nest Prevention (Optional)
Prevents thread tangling at the start of sewing. The optional N-device ensures clean starts without unsightly “bird’s nests” on the fabric.

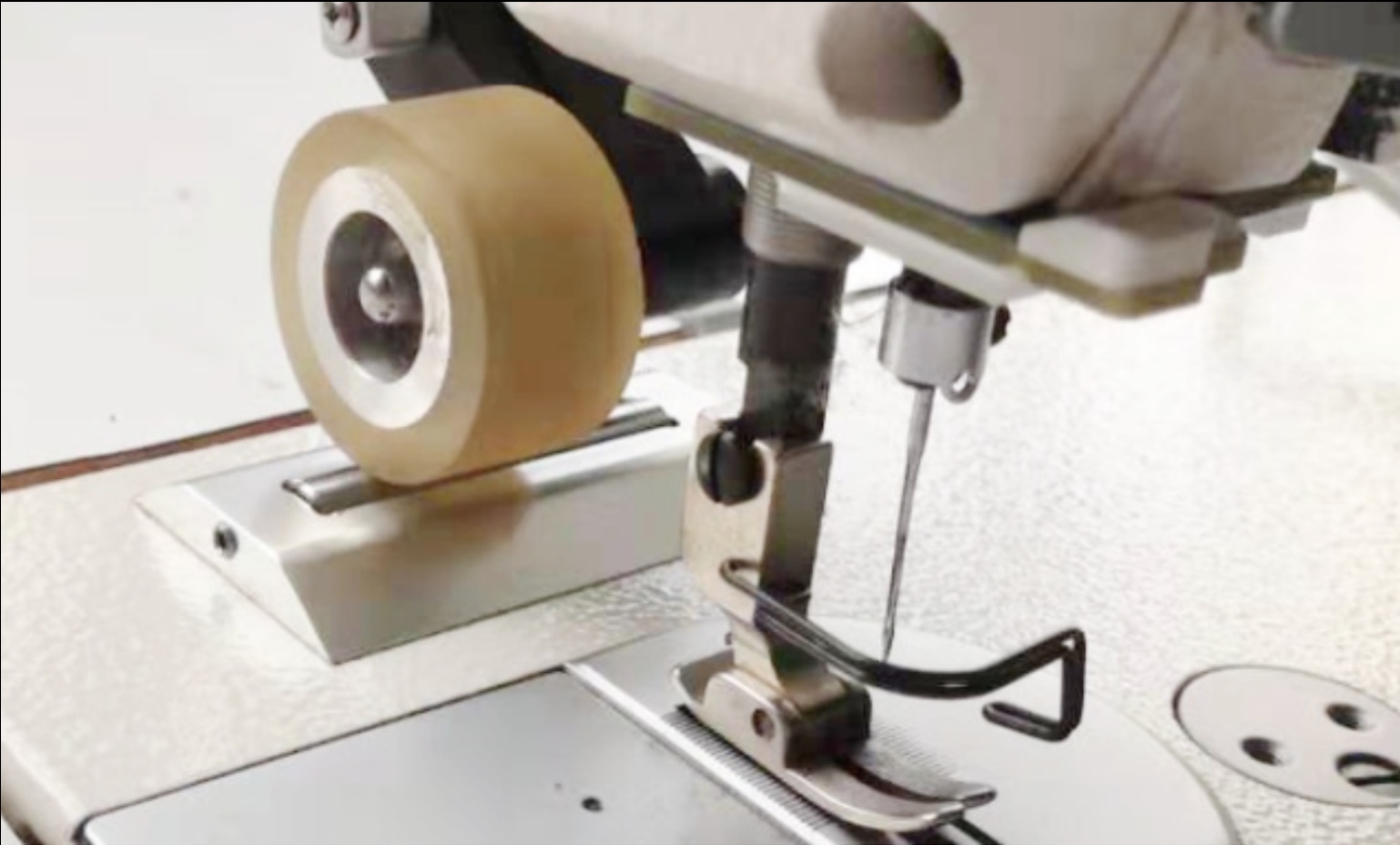

Integrated Puller (Optional)
Original digital puller designed for lockstitch seams. Enhances fabric feeding, prevents needle breakage on heavy materials, and operates in perfect sync with machine functions.

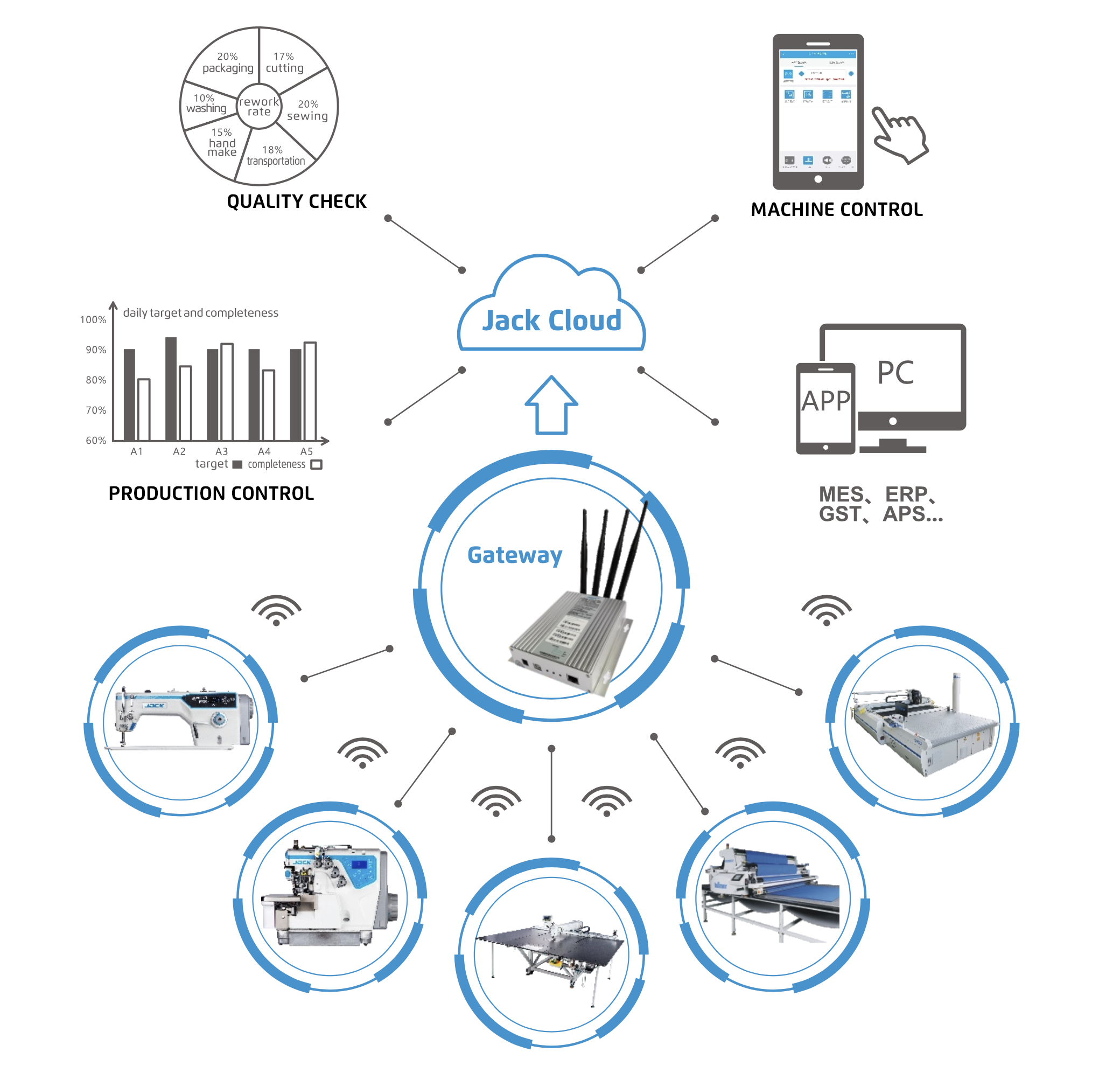

Industry 4.0 (Optional)
With the integrated Wi-Fi module, you can remotely adjust machine parameters and monitor productivity through a dedicated app. Note: One Jack gateway is required for every 50 machines.
Technical Specification
| Model | Jack A5E-QL |
|---|---|
| Needle | DBx1 11-18# |
| Thread Number | 2 |
| Max. Stitch Length | 5 mm |
| Presser Foot Lifter Height | 5 - 13 mm |
| Max. Speed | 5000 s.p.m |
| Thin / Medium Thick Material | YES |
| Thick Material | - |
| Volume | 690 x 295 x 550 mm |
More Information
| Part No | JACKA5EQL |
|---|---|
| Weight (KG) | 77.000000 |
| Manufacturer | Jack |
