JACK H7-LC LONG ARM WALKING FOOT MACHINE COMPLETE

Extra-Large Space

The extended 365mm arm and 100mm extended head give a 360 x 130mm working space, making it far easier to handle large, bulky work. Sew large leather pieces and sofa cushions smoothly without repeated flipping.

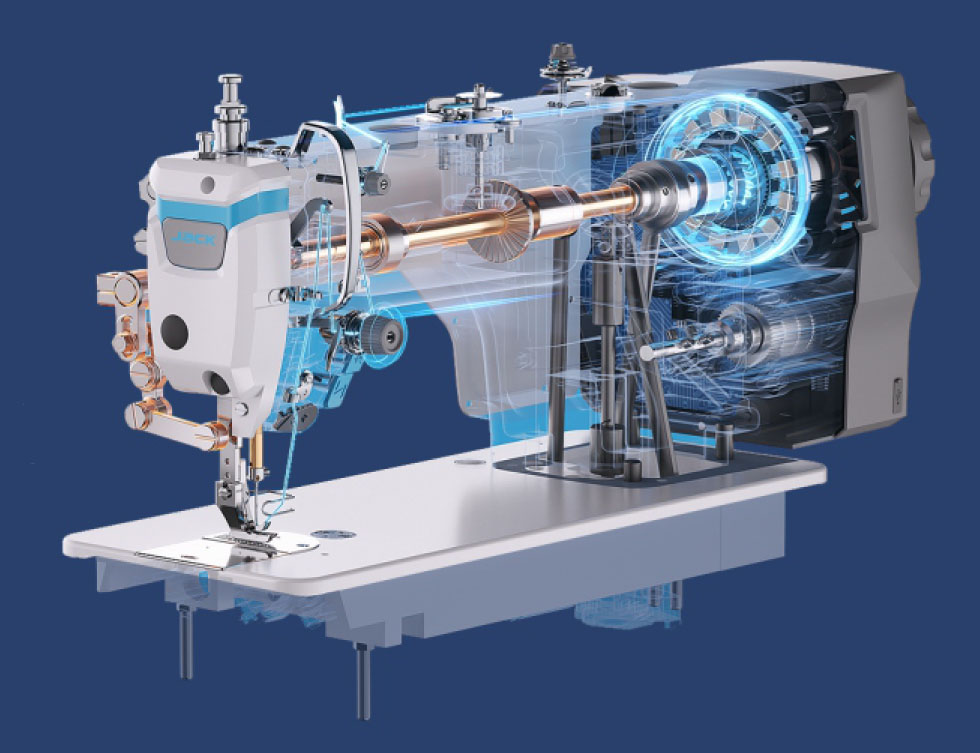

Smart Stitching System

Wrinkle-free and bead-free stitching. Flexible Alternation Technology and 0 Resistance Thread Control Technology work together for smooth results on thin fabrics and refined seams on thick materials.

Flexible Alternation Technology

An ultra-wide alternation range of 1.3 mm to 5.5 mm suits both thin and thick fabrics, with stable transmission. The integrated 10.5 Nm torque delivers rapid response and precise fabric feeding.

0 Resistance Thread Control

Thread passing resistance has been reduced by 30%, while loop stability has improved by 20%, for stable thread tension control, consistent stitch formation and a flawless stitch appearance.

Footlifter Adjustment

The presser foot lifter offers 16 adjustable levels, now fully digitalized and controlled by a stepper motor—just like the stitch length—for greater precision and ease of use.

Top Feed

Powered by a 750W motor, this machine is built for durability and strength. It delivers excellent results even on heavy materials, easily sewing through up to 8 layers of leather with outstanding penetration force.

Digital Knee Lifter

Say goodbye to the effort of lifting the old heavy mechanical foot. The new integrated digital knee lifter offers precision and comfort, enabling micro-lift adjustments with a light knee touch—perfect for tasks such as corner sewing.

Pattern Sewing

Create beautiful ornamental stitches with adjustable stitch length, allowing you to customize patterns to suit different design needs.

Oil-Free Head

Optimized DLC-coated components and needle roller bearings eliminate the need for lubrication, preventing oil stains and addressing common customer concerns.

Cam Positioning

Enables quick cam alignment using a handwheel precision reference, allowing for accurate adjustments and simplifying maintenance and debugging.

Accurate Stitch Length – Digitally Controlled

The stitch length is precisely controlled by a stepping motor, allowing adjustments accurate to 0.1 mm.

High Re-Stitch Rate: Perfect re-stitching is possible at any stitch length, with reinforcement stitches achieving a high degree of overlap.

Voice Navigation

When the machine encounters a fault, simply press the voice navigation button to hear professional troubleshooting guidance. This feature enables smart maintenance and convenient warranty support.
