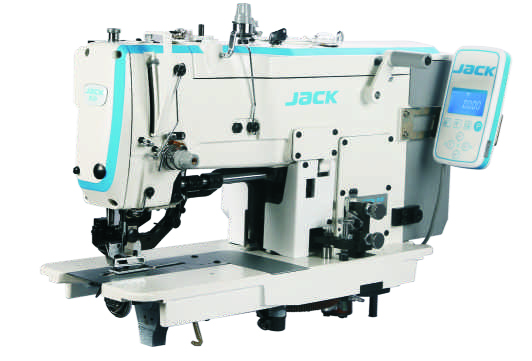

JACK JK-T783G-Z BUTTON HOLE MACHINE 40MM FOOT DIRECT DRIVE

Part No JACKJKT783GZ
Jack JK-T783G-Z Integrated Electronic Lockstitch Buttonholiding Machine
Pricing and Availability on Request
Contact Us for Quote

Description / JACK JK-T783G-Z BUTTON HOLE MACHINE 40MM FOOT DIRECT DRIVE

Jack JK-T783G-Z

Integrated Electronic Lockstitch Buttonholiding Machine

Mechanical Buttonhole machine driven by an integrated single shaft motor has low vibration, low noise, high efficiency and excellent sewing quality. Automatic thread trimmer and foot lifter controlled by a stepper motor to improve efficiency and reduce labor. New panel with automatic piece counter function. Suitable for sewing buttonholes on various fabrics, shirts, overalls, T-shirts.

Mechatronics,easy To Install

Driven by servo motor, it has low vibration, low noise, high efficiency production performance and excellent sewing quality

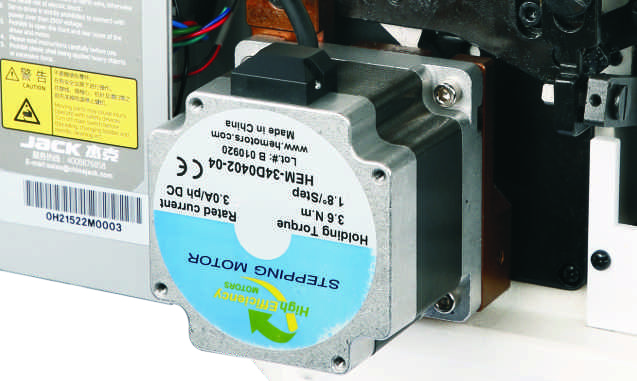

Auto Lifting And Trimming, Energy Saving And Efficient

With automatic presser foot lifting and automatic thread trimming functions, improve work efficiency and reduce labor intensity

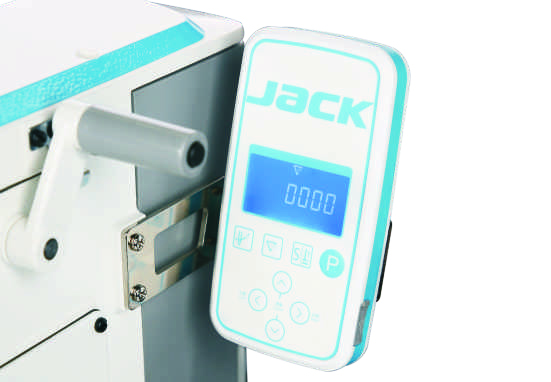

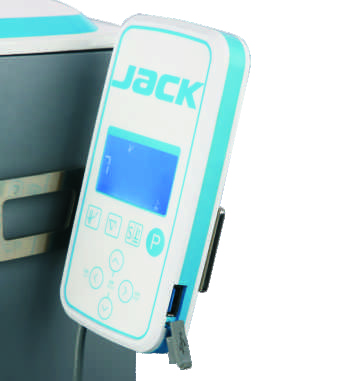

Dot Panel, easy Operation

With patterns and parameter display functions, no need to consult the manual, easy to operate, you can freely set the number of soft start needles, dynamically observe and adjust the machine running speed, and the operation is easier

Wide Range Of Applications, Beautiful Stitches

JK-781GK is equipped with a special knitting dedicated presser foot, a small needle plate and a feeding plate. For high-elestic fabics it also can hold down and sew beautiful stitches. This machine more suituable for knitting material with lower thread breakage rate

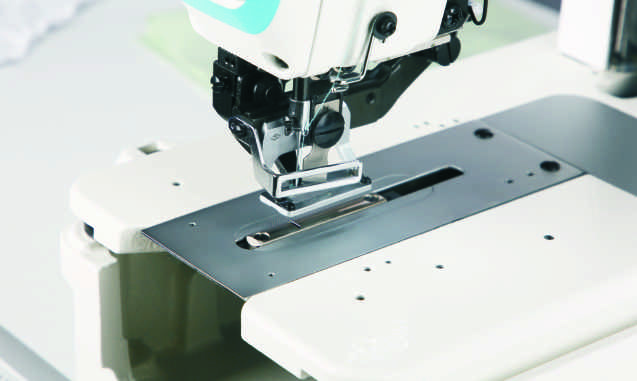

Short Thread Remaining, No Need Thread Timmer Again

Thin woven material equipped with short thread remainning presser foot, a needle plate and feeding plate, by changing the thinkness of the small needle plate to keep the remain thread within 3mm. Then the factory can reduce the cost of thread cutting workers; reduce enterprise costs and increase profitability

Bottom Thread Detection

When the bobbin thread margin is insufficient (after sewing the current buttonhole), stop in time

Automatic Counting Function

It can automatically record the number of keyholes for easy counting and quick verification.

Technical Specification

Model Jack JK-T783G-Z
Functions Woven Materials
Button Hole Size (mm) 40x5
Needle DPx5 #12
No. of Needles 1
Side Cutter Function 1/4"~1-1/4"
No. of Threads 2
Parallel Interspace (mm) 0.2-205
Automated Thread Trimmer Yes
Auto Presser Foot Lifter Yes
Presser Foot Lifter Height (mm) 12
Max. Speed (s.p.m) 3600
Volume (mm) 730x365x695
Weight (kg) 46/66

More Information

Part No JACKJKT783GZ
Weight (KG) 94.000000
Manufacturer Jack
