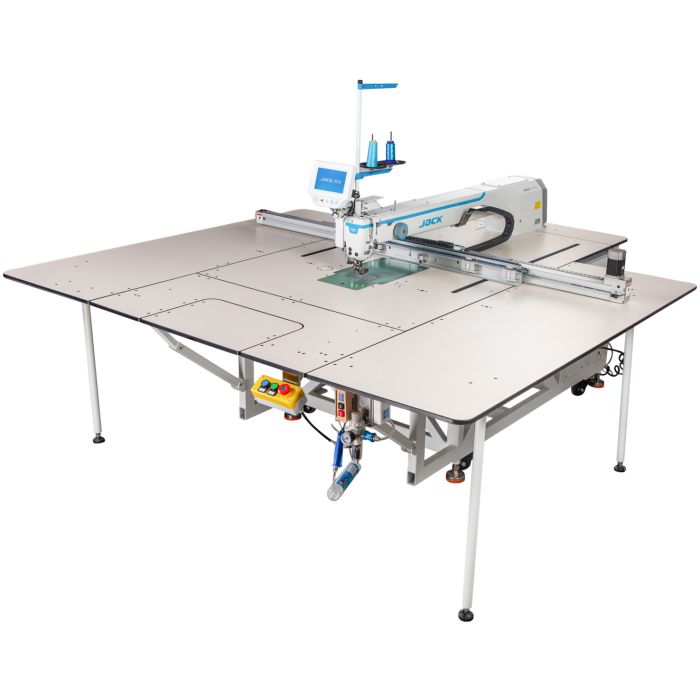

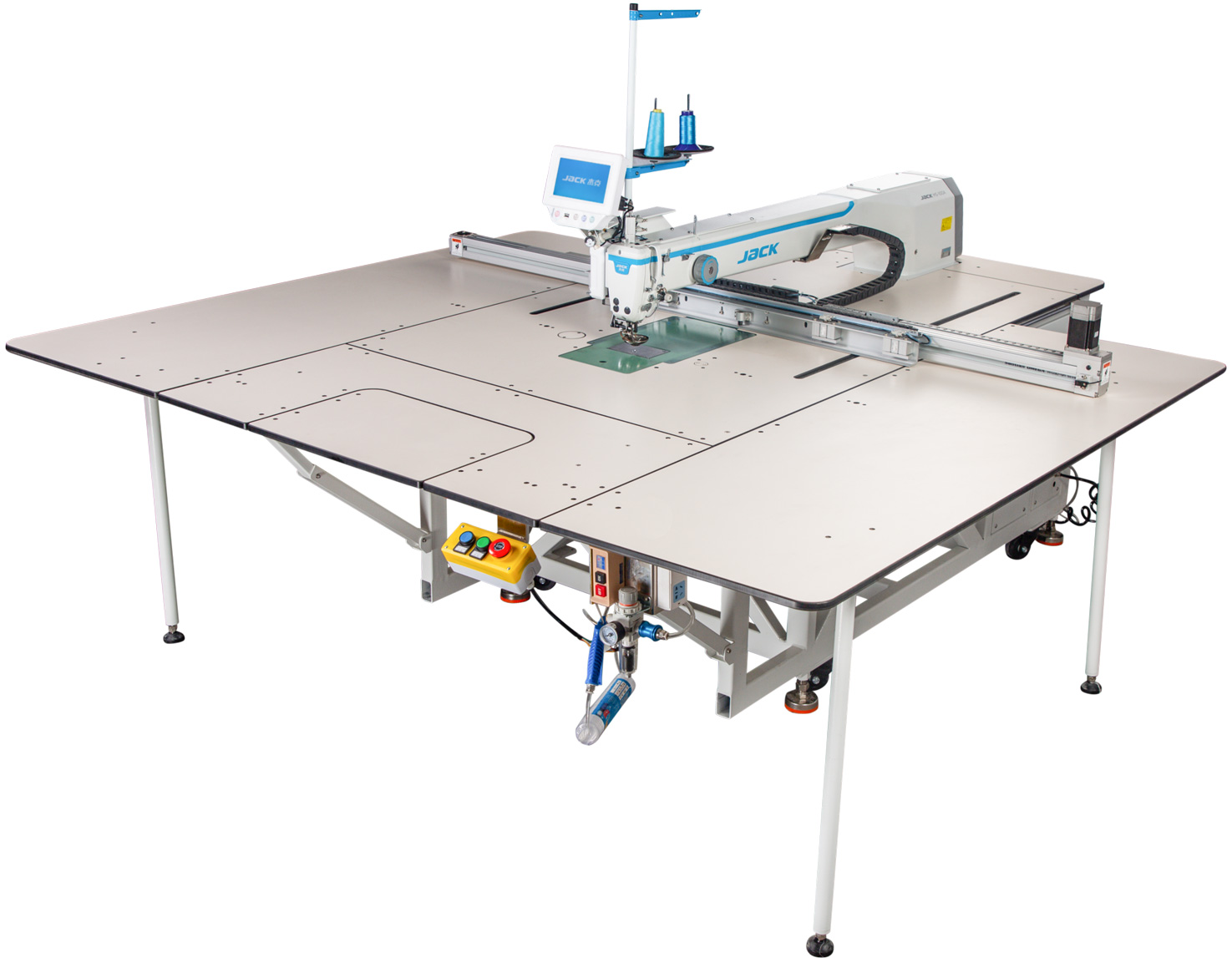

Jack MS-100A+ -95SSYX-F13

Foldable Pattern Field Machine - Sewing Area 1400 x 950 mm

Pattern Field machine large 140x95cm, advanced for light and Heavy Duty with double screw drive type, new fully resealable design.

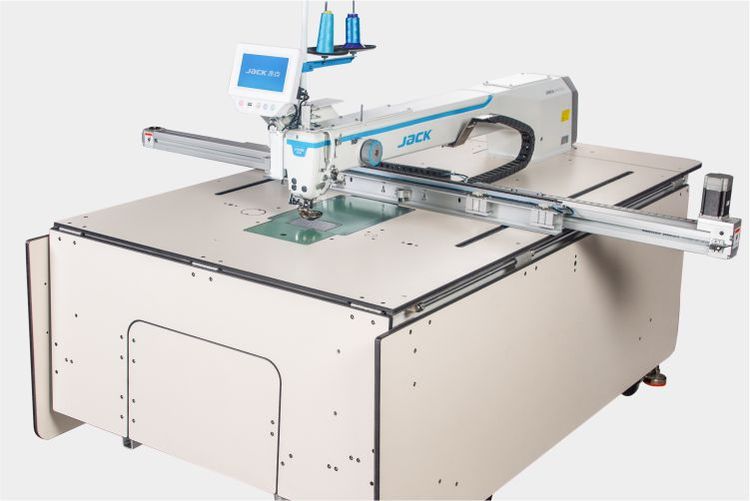

Compact Design

Sewing area 140x95cm, however, thanks to the folding and sliding side and front tables, it is possible to reduce the overall dimensions in 1 minute and transport is very easily without having to disassemble it.

Electronic Tension Post

At the start it effectively reduces the bird nest (lower entanglement at the start of the seam). During the cut it keeps the thread taut improving the quality.

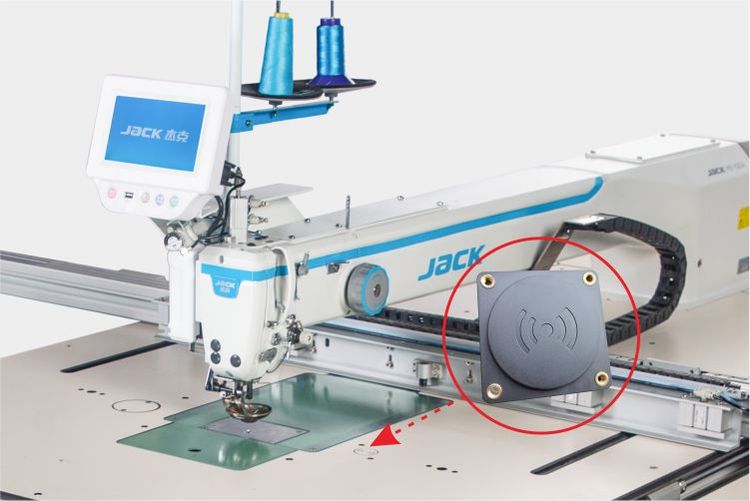

RFID

The radio frequency reader reads disks where you can save the drawing of sewing endless times. When you approach the template, the machine will automatically change the drawing.

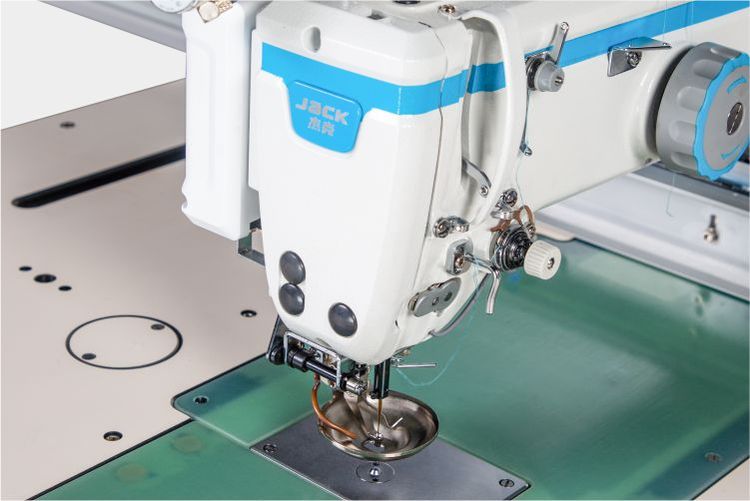

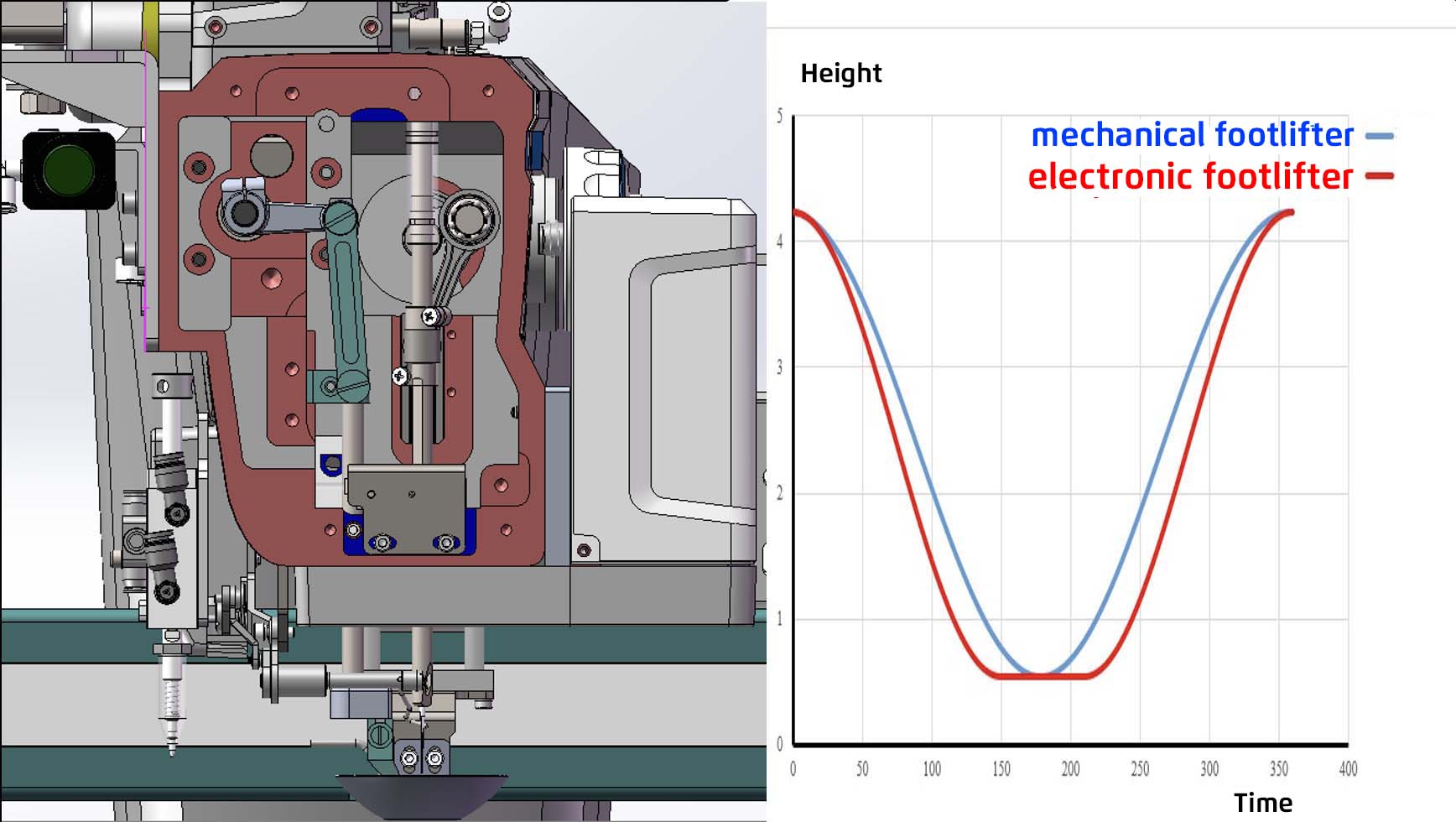

Electronic Foot

The smart foot stays down longer waiting for the needle to rise to prevent stitches jump and break. It is also possible to set different heights in different seam sections.

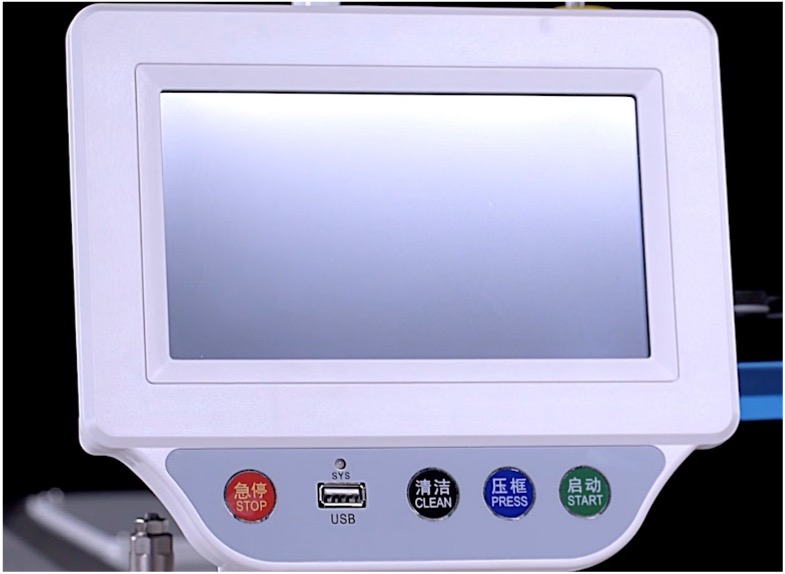

Touch Display

The quick buttons allow you to quickly activate the most used functions: emergency stop, air cleaning, descent of template clamps and start of sewing.

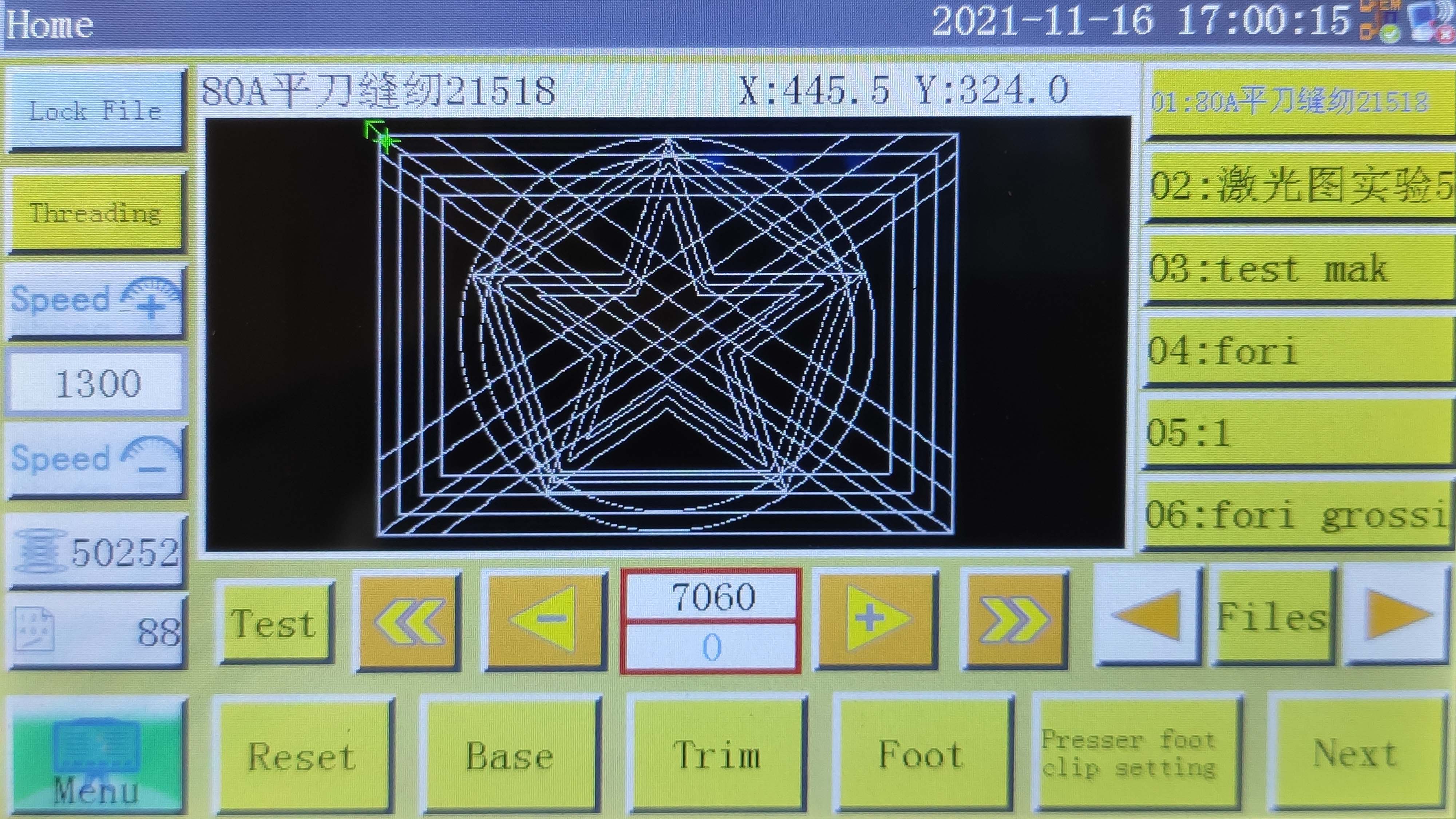

On-Board Programming

Thanks to the simple and intuitive interface, it is possible to create programs from the display or via PC software and import them via USB or wifi with IOT.

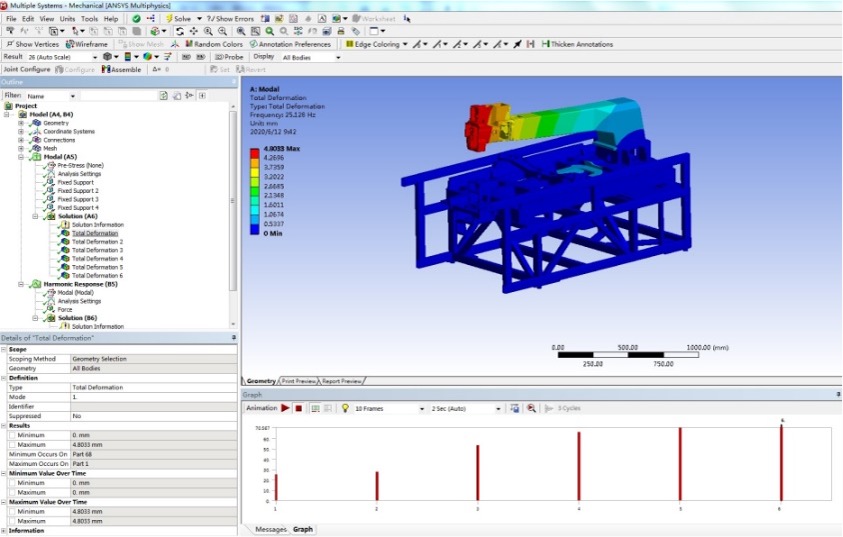

Vibration Reduction

Thanks to the emulation and dynamic balance analysis software, it was possible to increase the absorption of vibrations, now the resonance point of the entire machine is 1400r / min.

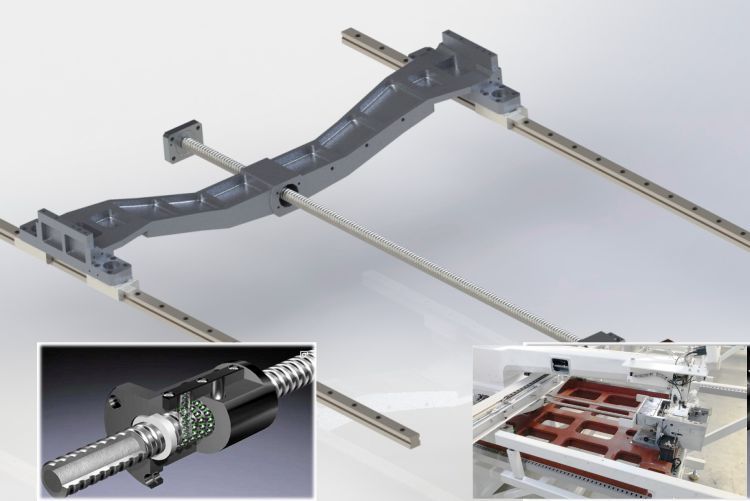

Double Screw Transmission

Improves transmission accuracy, reduces vibration and improves seam stability. The tracks with recirculating ball slide where the Y axis slides prevent dust and remnants of thread from settling, reducing fluidity.

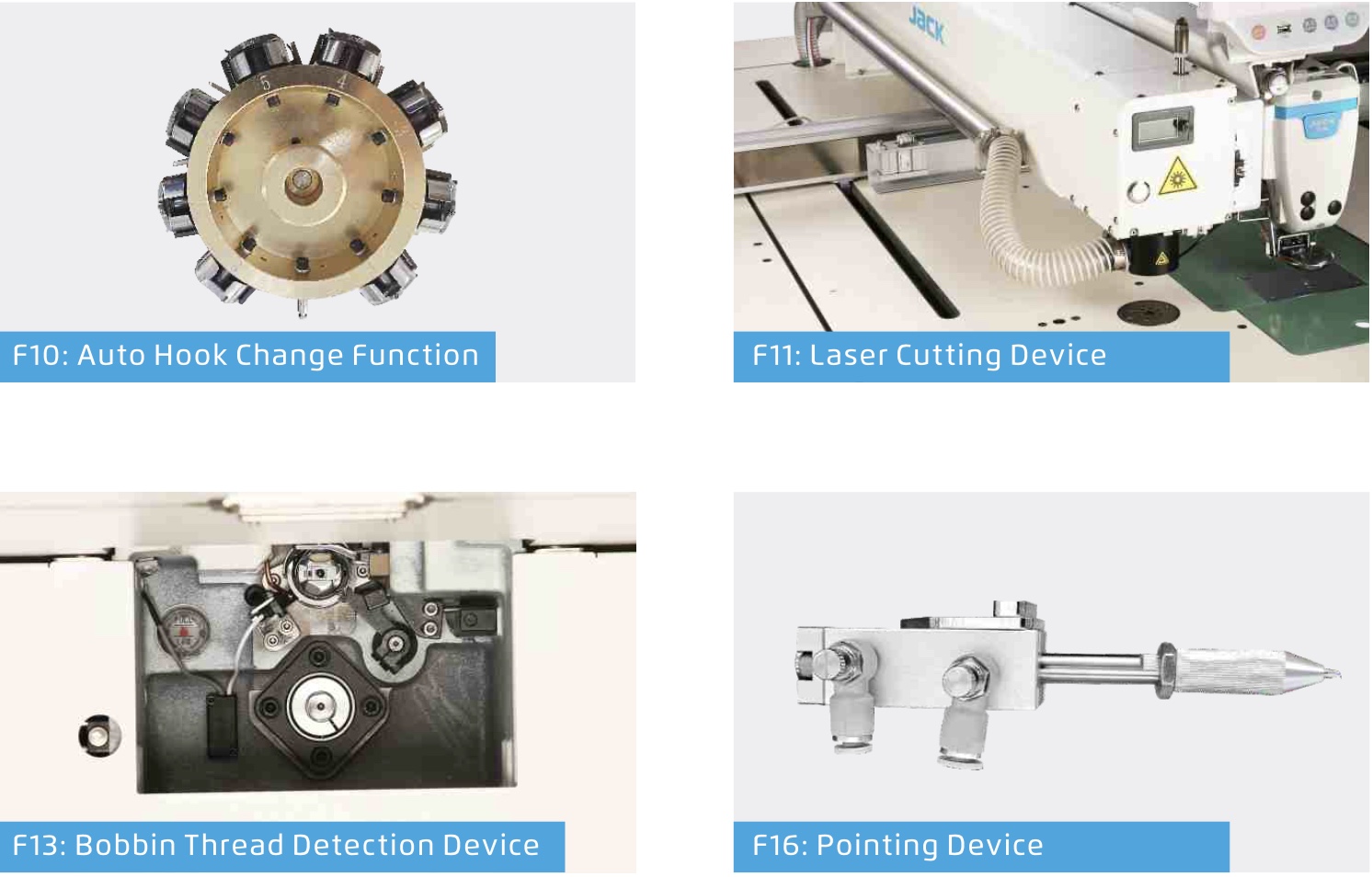

Optionals

Automatic bobbin change, laser cutting grazing the seam, fine bobbin raising to avoid sewing empty and nib to mark precise points where to attach pockets or other processes are available.

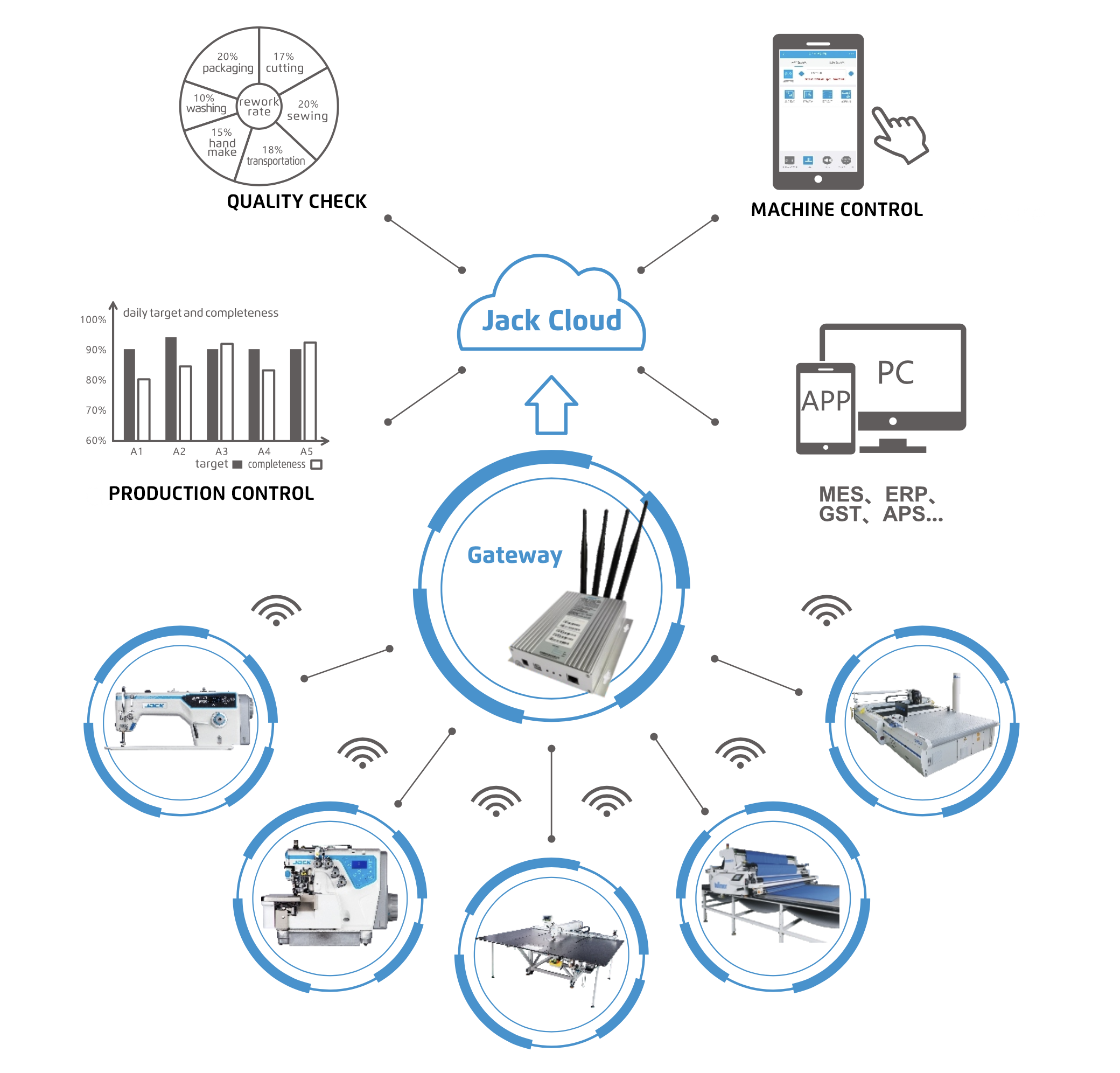

Industry 4.0 IOT (+)

Edit parameters, view statistics, send sewing designs from App / WebApp directly to the machine in the cloud wherever you are.

Technical Specifications
